Removing dashboard moulding on passenger's side
NOTE:
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant .
- Some steps must be carried out automatically .
- Some of the repair illustrations show only one side of the vehicle .
- Open cover flap on navigation system.

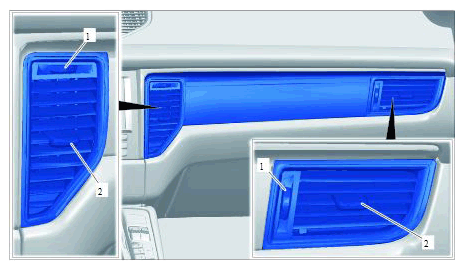

- Open closing flaps on the air vents using adjusting wheels -1- .
- Move both vane tabs -2-
to centre position.
Closing flap, vane tab

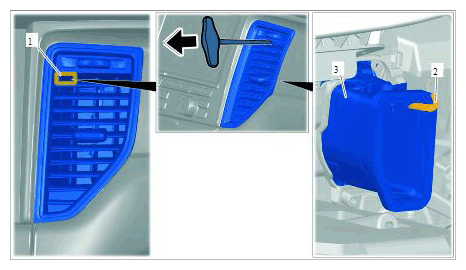

- Guide puller hook in the upper area -1- into the left air vent and make sure that the hook -2- engages securely in the housing -3- . Suitable tool: Hook 3438

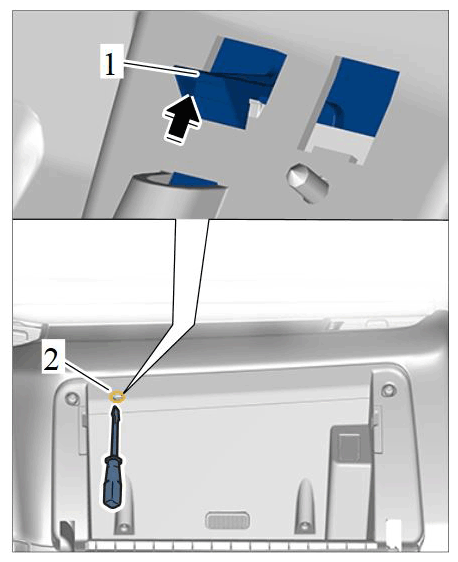

- Hold puller hook tightly and release the left locking lug.
- Pull on the puller hook until the air vent with moulding disengages from the dashboard.
Positioning puller hook at the left

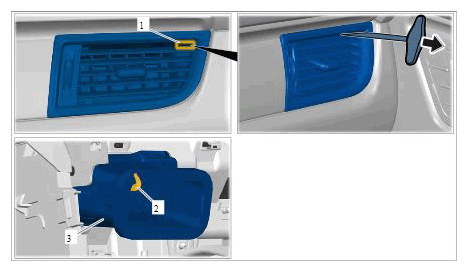

- Guide puller hook in the upper area -1- into the right air vent and make sure that the hook -2- engages securely in the housing -3- .

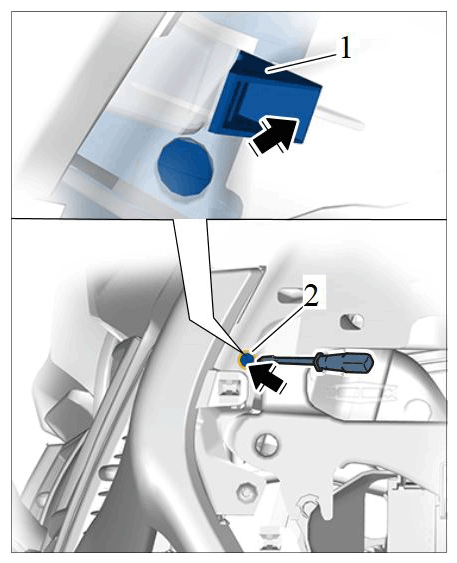

- Hold puller hook tightly and release the right locking lug.
- Pull on the puller hook until the air vent with moulding disengages from the dashboard.
Positioning puller hook at the right

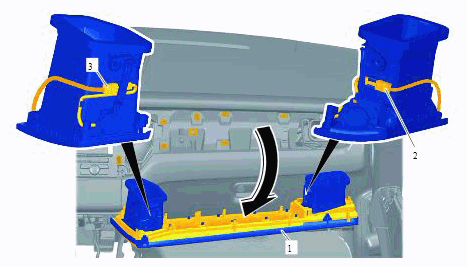

- Pull air vent with moulding -1-
out of the dashboard. On vehicles with illuminated air vents, disconnect electric plug connections -2, 3-
.
Electric plug connection

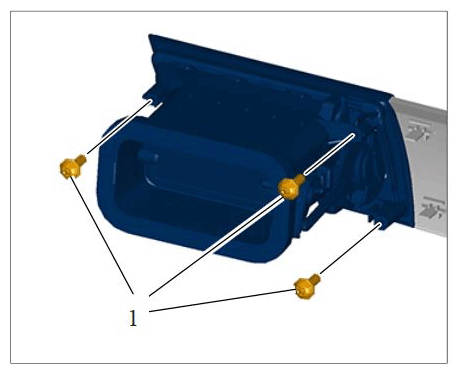

- Unscrew fastening screws -1-
on the left air vent and disconnect air vent from the moulding.
Mounting for right centre air vent

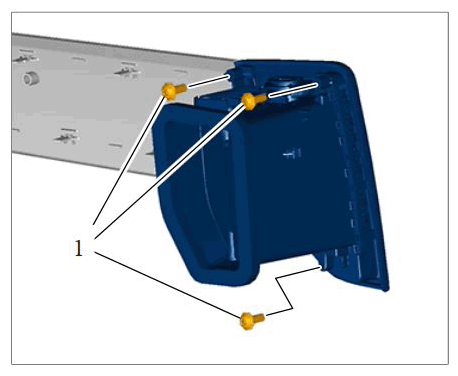

- Unscrew fastening screws -1-
on the right air vent and disconnect air vent from the moulding.
Mounting for air vent for right door window
