Removing dashboard moulding on driver's side at the right

NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .
  1. Cover steering-column switch and steering wheel with a protective mat.
  2. Open cover flap on navigation system.
  3. Open closing flap on the air vent using adjusting wheel -1-  .
  4. Move vane tab -2-  to centre position.

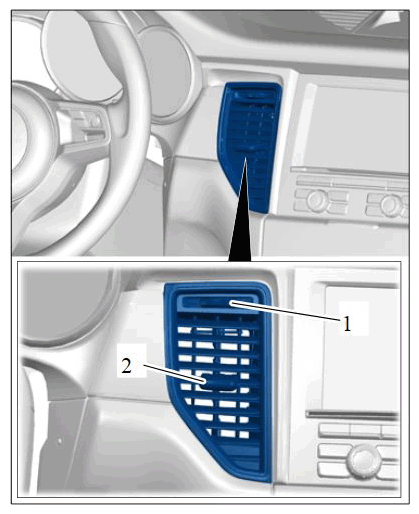

    G11981735

    Closing flap, vane tab

  5. Guide puller hook in the upper area -1-  into the air vent and make sure that the hook -2-  engages securely in the housing -3-  . Suitable tool: Hook 3438
  6. Pull on the puller hook until the moulding disengages from the dashboard.

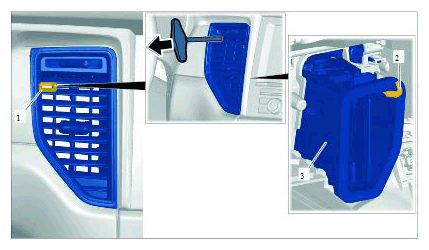

    G11981736

    Positioning puller hook

  7. Pull air vent with moulding -1-  out of the dashboard. On vehicles with illuminated air vents, disconnect electric plug connection -2-  .

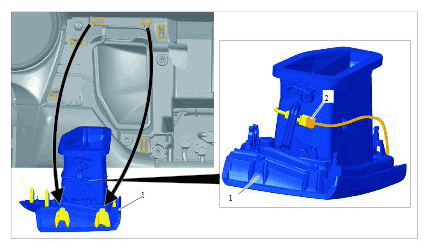

    G11981737

    Electric plug connection

  8. Unscrew fastening screws -1-  on the moulding and disconnect moulding from the air vent.

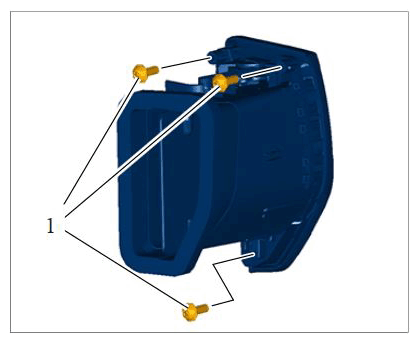

    G11981738

    Mounting for left centre air vent
