Removing A-pillar trim panel

NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .
  1. Unclip cover -1-  .
  2. Unscrew fastening screw -2-  .
  3. Unclip A-pillar trim panel -3-  . Make sure that the fixing clips -4-  are loosened completely from the A-pillar.
  4. Guide trim panel -3-  out of the dashboard mounting -5-  in direction of arrow.

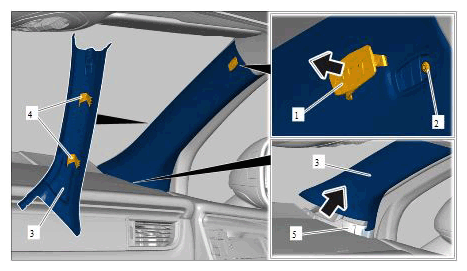

G11981719

A-pillar trim panel
