Removing carpet

NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .
  1. Carefully lift up rear scuff plate -1-  in the front area and remove carpet -2-  .
  2. Lift carpet -2-  in the rear area -arrow A-  .
  3. Guide all electric lines out of the carpet -2-  .
  4. Disengage the carpet -2-  at the sides from the retaining pivot -3-  .
  5. Pull carpet -2-  back slightly.
  6. Press carpet -2-  together slightly in the footwells, guide it out at the trim panels -4-  and remove it by pulling it to the rear.
  7. Remove carpet -2-  .

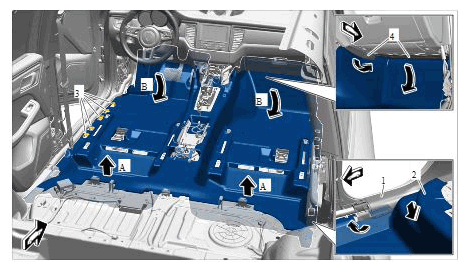

    G11981718

    Carpet
