Removing footrest

NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .
  1. Remove floor mat -4-  .
  2. Unclip footrest -1-  at the carpet.
  3. Guide tab -3-  out of the trim panel under the dashboard -2-  .
  4. Remove footrest -1-  .

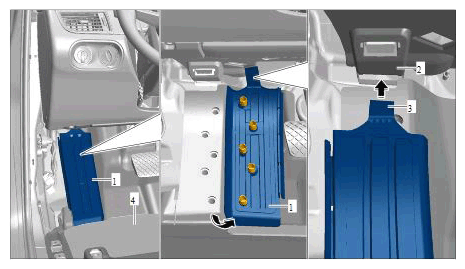

    G11981715

    Footrest
