Removing front side-section trim panel

NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .
  1. Reach into the lower area and unclip locking lug -5-  on door sill trim -4-  .
  2. Unclip trim panel -3-  at the body and guide it out at the rubber door seal -2-  .
  3. Pull trim panel -3-  down off the tab on the A-pillar trim panel -1-  and remove it.

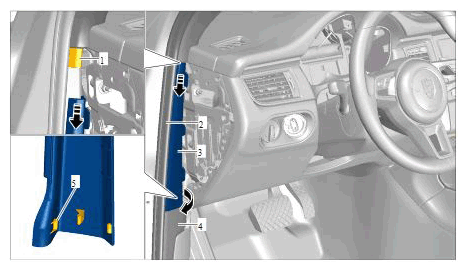

    G11981714

    Front side-section trim panel
