Removing trim panel under dashboard at the right

NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .
  1. Unscrew fastening screws -1-  .
  2. Unclip trim panel -2-  at the dashboard and remove trim panel -2-  .

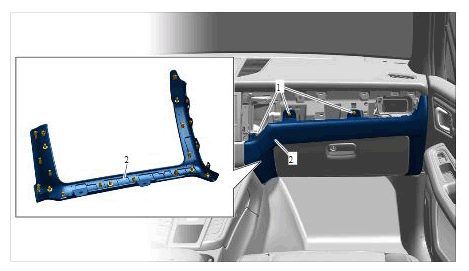

    G11981707

    Trim panel under dashboard at the right
