Removing front trim panel

NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .
  1. Pull expansion rivets -3-  out of the front and rear section.
  2. Unclip front section at the front -arrows-  .
  3. Guide front section out of the tabs -2-  and remove it.
  4. Unscrew fastening screw -1-  , then guide tab on the rear section out of the lock support cover and remove trim panel.

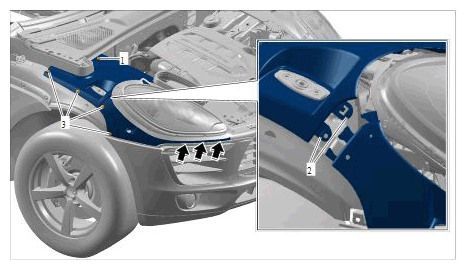

G11981690

Front trim panel
