Electric Park Brake Release When The Vehicle Has No Electrical Power: Part(S)
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport, 2017 Land Rover Discovery Sport, 2016 Land Rover Discovery Sport, and 2015 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
| STEP | PART NAME | QUANTITY |
|---|---|---|
| Adjustment Step 1 | Electric park brake actuator fitting kit | 2 |
CHECK
WARNING:
Chock the wheels and make sure that all personnel are clear of the vehicle before carrying out the following procedure.
NOTE:
- To be carried out in the event that the vehicle has no electrical power.
- This procedure must be completed to the components on both sides of the vehicle.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle.
Refer to: JACKING
Refer to: LIFTING
- Remove the rear wheels and tires.
Refer to: WHEEL AND TIRE

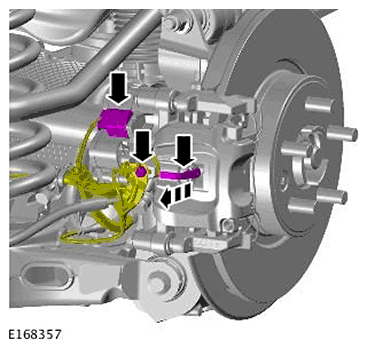

Disconnect and release the wiring harness.
Remove and discard the parking brake actuators kits.
Using a suitable tool, rotate piston until the parking brake is released.
ADJUSTMENT
- Install the new parking brake actuators kits.
Renew Part: Electric park brake actuator fitting kit Quantity: 2 .
Torque Specification: 11 Nm
- Connect and secure the wiring harness.
- Install the rear wheels and tires.
Refer to: WHEEL AND TIRE
- Calibrate the electric parking brake (EPB) using the diagnostic tool.
