Electric Park Brake Switch
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport, 2017 Land Rover Discovery Sport, 2016 Land Rover Discovery Sport, and 2015 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.

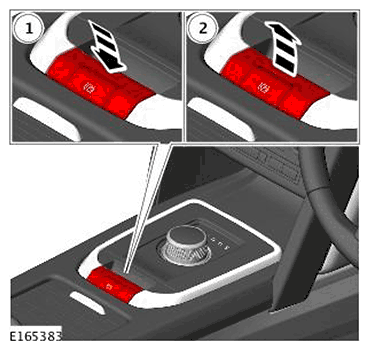

| ITEM | DESCRIPTION |
|---|---|
| 1 | Release park brake |
| 2 | Apply park brake |
The resistive ladder type switch has four hardwired connections with the ABS control module, consisting of two apply circuits and two release circuits. This enables the ABS control module to perform a plausibility check on each switch selection.
The park brake is manually applied and released using the EPB switch, which is located in the floor console, behind the selector lever. Pulling the switch lever upwards applies the park brake. Pushing the switch lever down releases the park brake.
