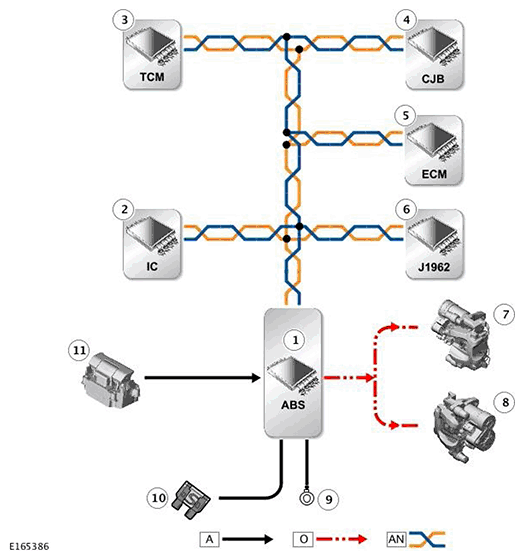

Control Diagram
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport, 2017 Land Rover Discovery Sport, 2016 Land Rover Discovery Sport, and 2015 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; AN
= High Speed (HS) Computer Area Network (CAN) Powertrain bus.
| ITEM |
DESCRIPTION |
| 1 |
ABS control module |
| 2 |
IC |
| 3 |
TCM (automatic transmission vehicles only) |
| 4 |
CJB |
| 5 |
ECM |
| 6 |
Diagnostic connector (J1962) |
| 7 |
Left EPB actuator |
| 8 |
Right EPB actuator |
| 9 |
Ground |
| 10 |
Power supply |
| 11 |
EPB switch |
