Component Location
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport, 2017 Land Rover Discovery Sport, 2016 Land Rover Discovery Sport, and 2015 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

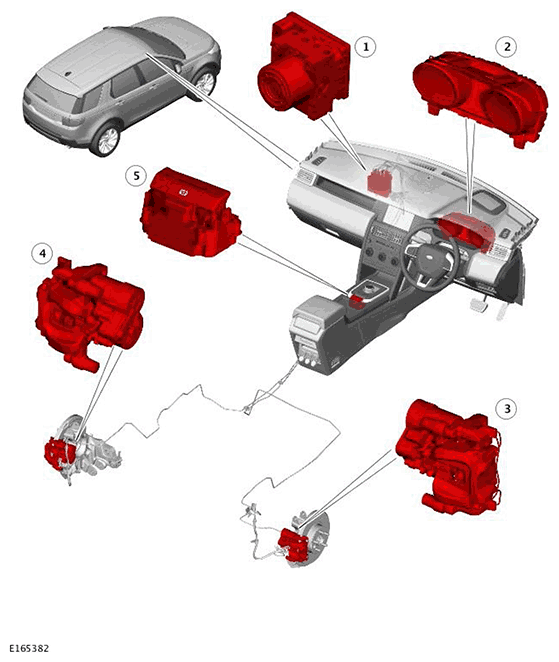

Right Hand Drive (RHD) illustration shown, Left Hand Drive (LHD) illustration similar
| ITEM | DESCRIPTION |
|---|---|
| 1 | Integrated Anti-lock Brake System (ABS) control module and Hydraulic Control Unit (HCU) |
| 2 | Instrument Cluster (IC) |
| 3 | Right Electric Park Brake (EPB) actuator |
| 4 | Left EPB actuator |
| 5 | EPB switch |
