Removing Coil Spring
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Preloaded or pressurized components
- Risk of squashing or bruising
→ Do not reach into the danger area.
→ Relieve the tension on components before starting work.
→ Secure components to prevent them from loosening suddenly.
Information
Coil springs
- Do not press coil springs together onto the block.
- Do not damage the surface of the coil springs (corrosion protection).
- Do not use solvents to clean the coil springs.
Follow the operating instructions of the spring compressor 9823 manufacturer!
- Release relevant coil spring using the spring compressor 9823
.
Information

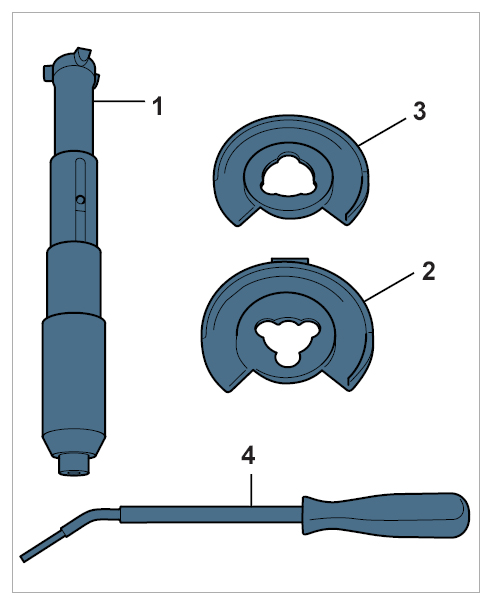

The countering wrench holder (welded pipe with hexagon socket) on the pressure plate with the locking profile -2- must be placed in the coil spring in such a way that the countering wrench -4- can be inserted.
The pressure plate with the locking profile -2- and the pressure plate with the ripple profile -3- must lie flush against the spring. If necessary, carefully perform the fine adjustment of the pressure plates during the clamping process.
- Insert the pressure plate -2- into the top half (as far up as possible) of the coil spring.
- Insert the pressure plate -3- into the lower half (as far down as possible) in the same way as the pressure plate -2- .

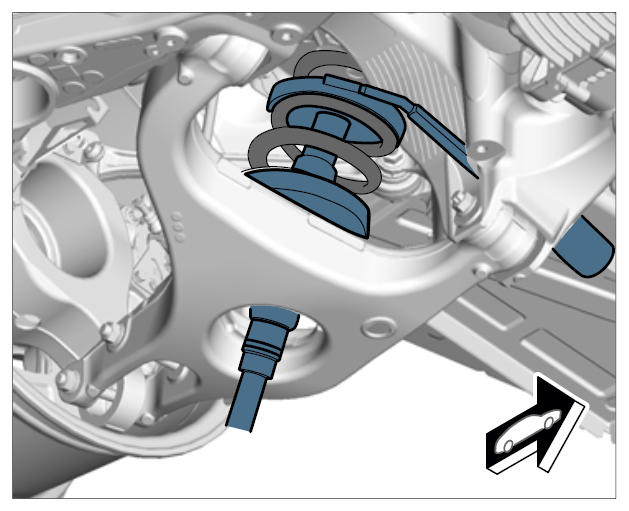

- Rotate the clamping cylinder -1- as far apart as necessary and insert it from below through the lower pressure plate -3- and through the upper pressure plate -2- .
- Turn the plunger of the clamping cylinder -1- through 60° to lock in the upper pressure plate -2- .
- During the clamping process, use the countering wrench -4- to hold the upper pressure plate -2- in position. This prevents twisting.
- Carefully compress the coil spring even further using the spring compressor 9823 until the upper coil spring mount can be taken out to the side and set down at a suitable location.
- Remove lower coil spring mount.
- Guide out the coil spring and upper coil spring mount with care.
