WM 420519 Removing And Installing Rear Axle Housing (Chassis SUBFRAME) (Except PANAMERA GTS, PANAMERA Turbo S, PANAMERA Platinum Ed., PANAMERA 4 Platinum Ed.): Tools

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Designation Type Number Description

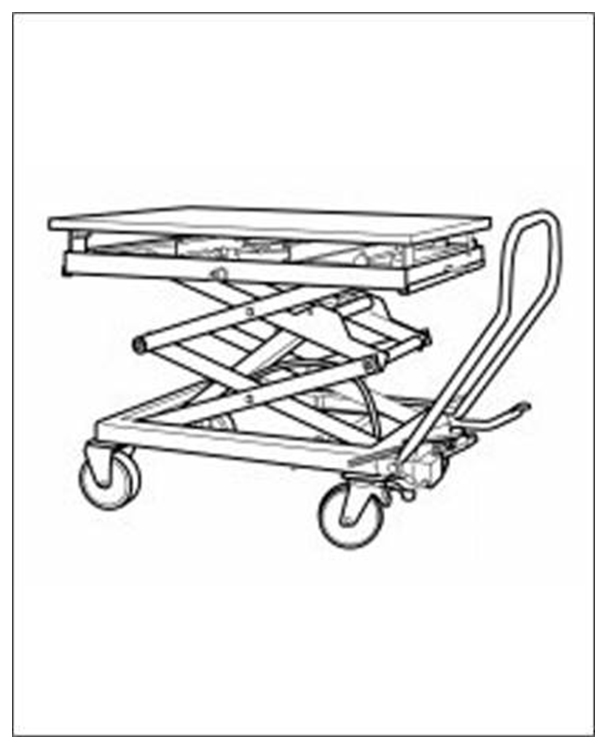

Master Gear unit elevating platform Workshop equipment WE 1206 For mounting the supporting frame. See operating instructions for assembly fixture for Porsche Panamera!
G09807529

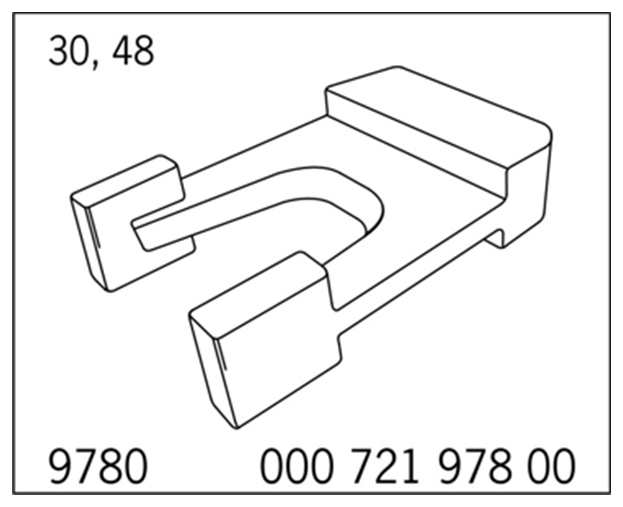

Loosening tool Special tool 9780
  • For loosening the PDCC lines
G09807530

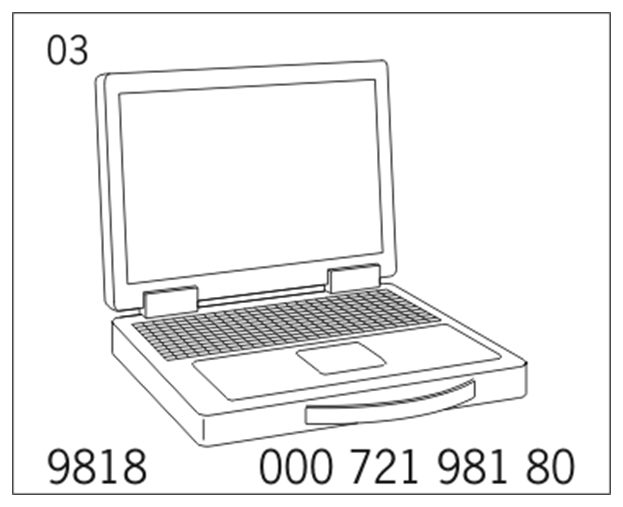

PIWIS Tester II Special tool 9818
G09807531
