Removing Front Part Of Front Wheel Housing Liner

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew fastening screws -1- on the front apron.

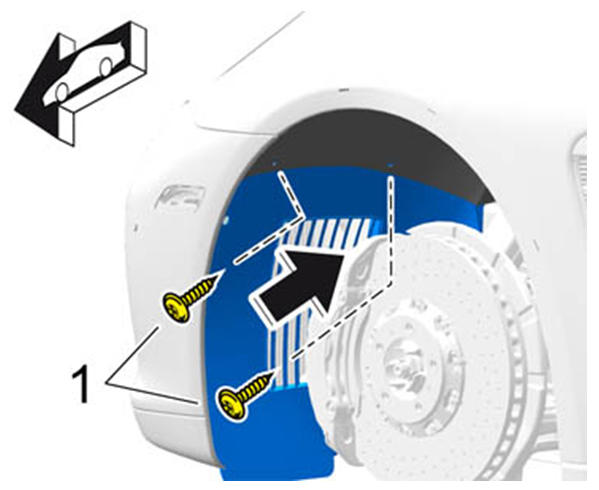

Fig 1: Removing Fastening Screws On Front Apron mounting Point For Front Wheel Housing Liner On Front Apron
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -1- securing wheel housing liner to front underbody panelling.

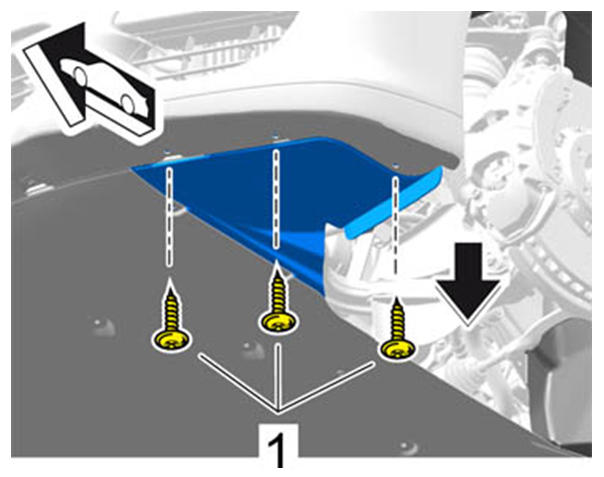

Fig 2: Removing Fastening Screws Securing Wheel Housing Liner To Front Underbody Panelling
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screw -1- securing wheel housing liner to front apron.

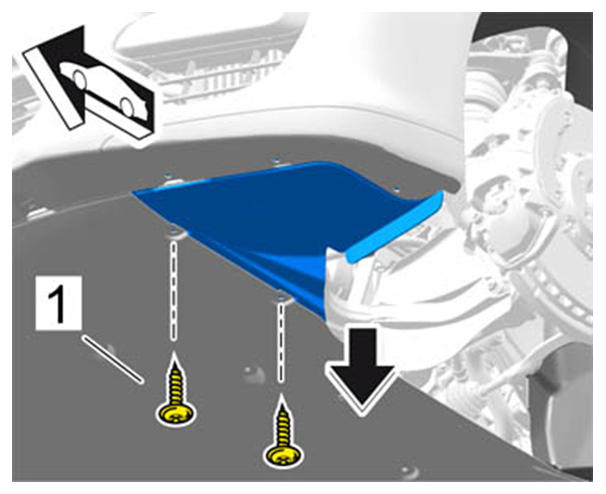

Fig 3: Removing Fastening Screw Securing Wheel Housing Liner To Front Apron
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew plastic nut -2- securing front part of wheel housing liner to rear part of wheel housing liner.

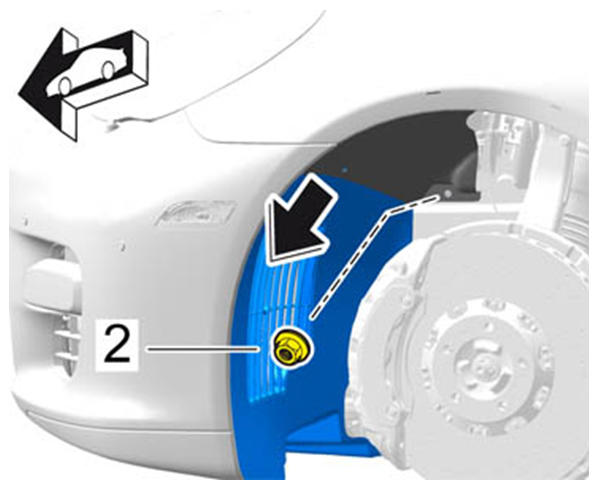

Fig 4: Removing Plastic Nut Securing Front Part Of Wheel Housing Liner To Rear Part Of Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -1- securing front part of wheel housing liner to rear part of wheel housing liner.

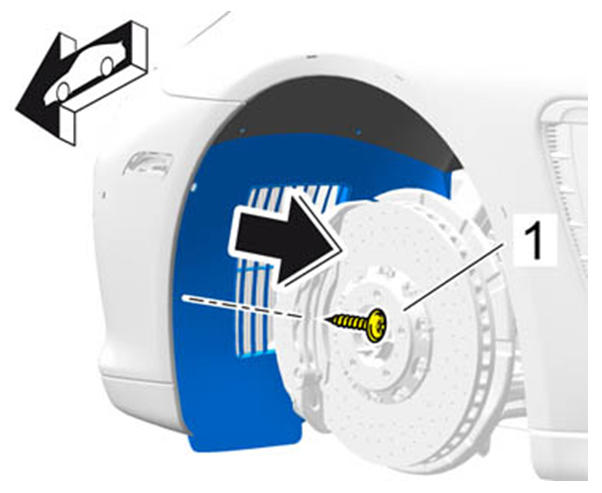

Fig 5: Removing Fastening Screws Securing Front Part Of Wheel Housing Liner To Rear Part Of Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove wheel housing liner.
