Removing Trim Panel For Tailgate

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

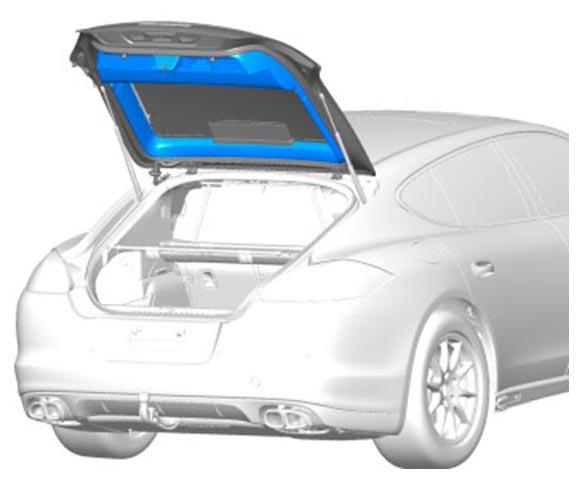

Fig 1: Overview Of Panel For Tailgate

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

Open the tailgate.
Remove trim panel for window frame at the center -1- .

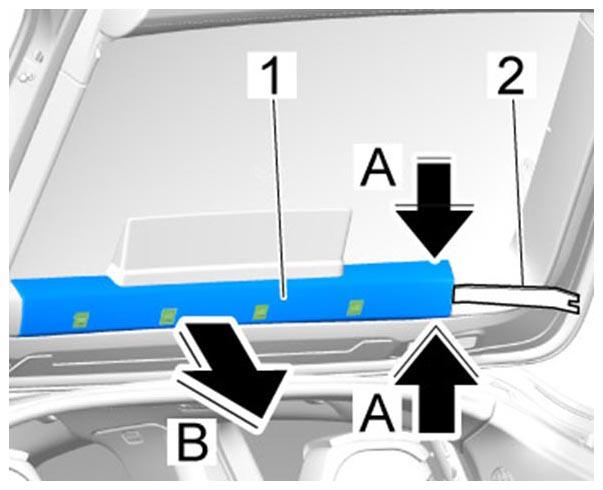

Fig 2: Removing Trim Panel For Window Frame At Centre
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Loosen the outer clips by pressing on the marked areas -A- .
2. 2.2. Lift off trim panel for window frame at the center -1- using a suitable tool -2- .
3. 2.3. Pull off trim panel for window frame at the center -B-

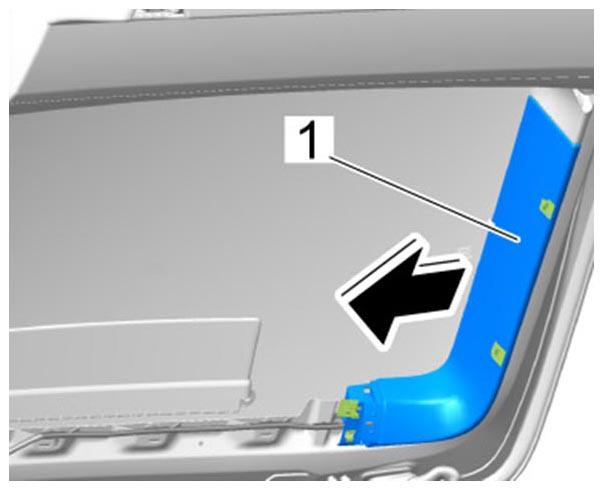

Remove trim panels for window frame at the side -1- .

Fig 3: Removing Side Sections Of Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Loosen clips using a suitable tool.
2. 3.2. Remove trim panels for window frame at the side -1- with a gentle pull.
Detach lower part of trim panel at the rear.

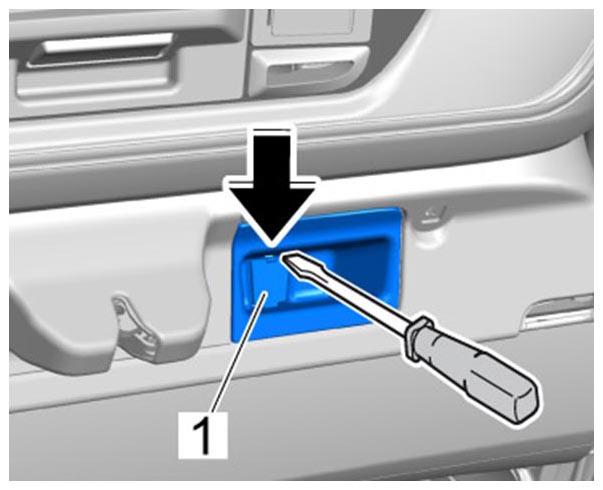

1. 4.1. Unclip cover -1- on fastening screw in the finger plate with a screwdriver.

  Fig 4: Clipping Off Cover In Finger Plate
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

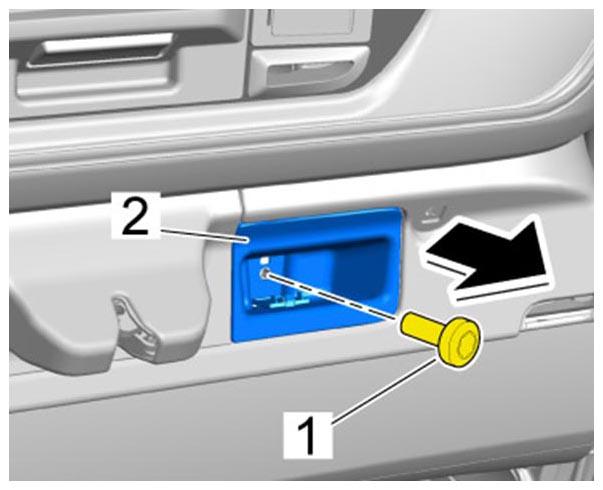

2. 4.2. Unscrew fastening screw -1- on finger plate -2- .

  Fig 5: Removing Finger Plate
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 4.3. Remove finger plate -2- .
4. 4.4. Unclip covers -1- .

  Fig 6: Unscrewing Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

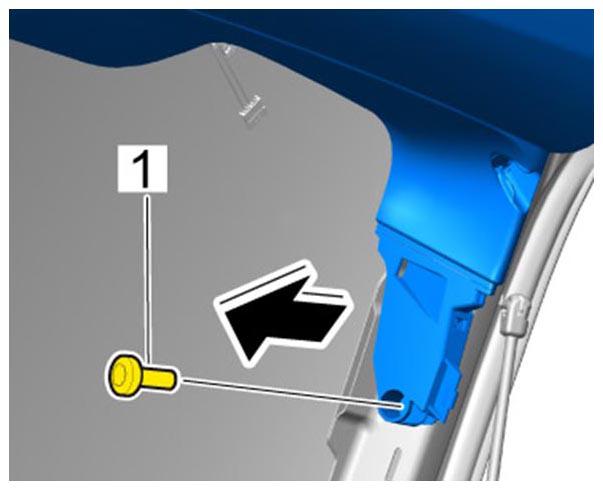

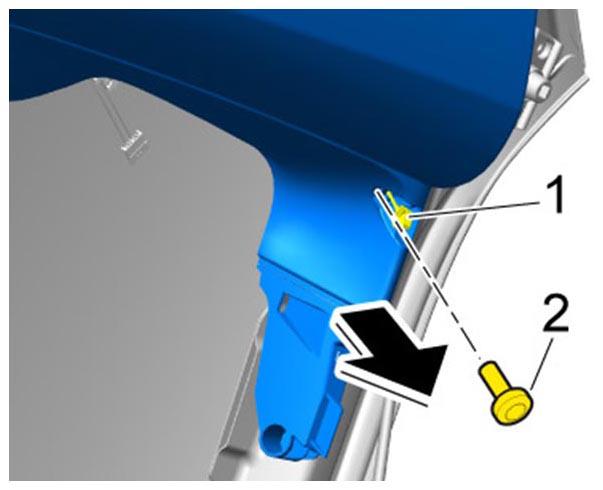

5. 4.5. Unscrew fastening screws -2- .
6. 4.6. Unscrew fastening screws -1- .

  Fig 7: Unscrewing Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

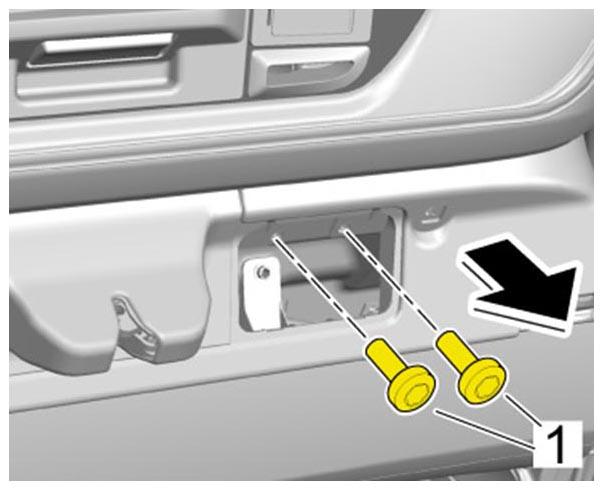

7. 4.7. Unscrew fastening screws -1- under the finger plate.

  Fig 8: Unscrewing Fastening Screws Under Finger Plate
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

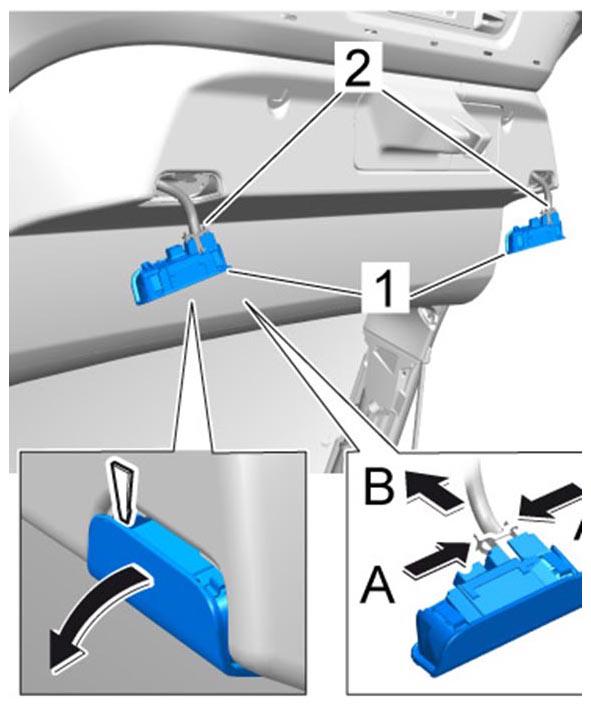

8. 4.8. Unclip luggage compartment lamps -1- .

  Fig 9: Unclipping Luggage Compartment Lamps
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. 4.9. Release electric plug connections. -A-
10. 4.10. Pull off electric plug connections -2- . -B-

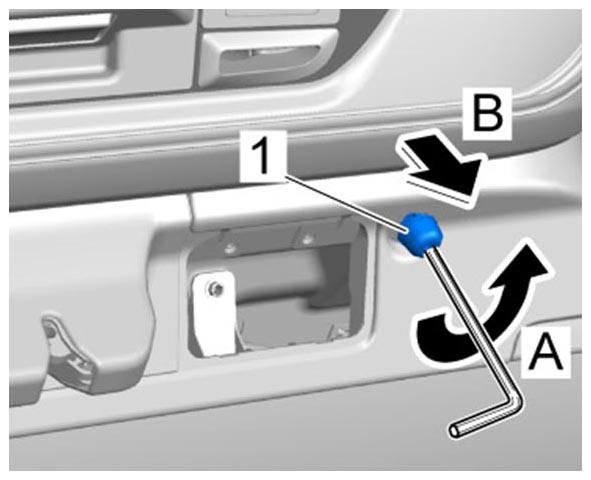

11. 4.11. Unscrew expanding screws on rubber stop -1- .

  Fig 10: Removing Rubber Stop
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
12. 4.12. Remove rubber stop -1- .

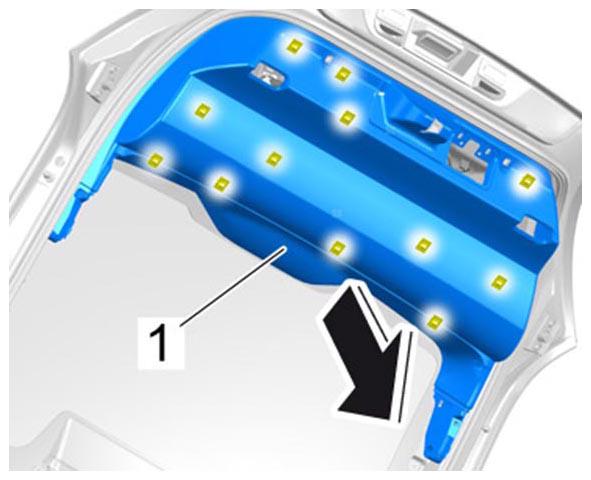

Carefully loosen the clips -marking- on the lower part of the trim panel -1- at the marked areas using a suitable tool.

Fig 11: Loosening Retaining Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off lower part of trim panel -1- .
