Home >> Porsche >> 2018 >> Macan Base >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> 10 - Engine - Crankcase, Suspension -- (95B) MACAN >> WM 105519 Removing And Installing Oil Separator (MACAN Only) >> Removing Oil Separator

Removing Oil Separator

Unscrew screws -arrows- and remove oil separator.

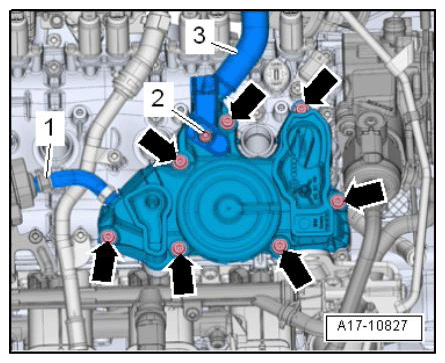

G11980299

Fastening screws for oil separator
