Preliminary Work

  1. Remove ignition coils for cylinders 3 and 4. → 282020 REMOVING AND INSTALLING IGNITION COILS
  2. Loosen hose clamp -1-  and disconnect hose from solenoid valve for carbon canister.
  3. Unscrew screw -2-  and disconnect positive crankcase ventilation hose -3-  from the oil separator.

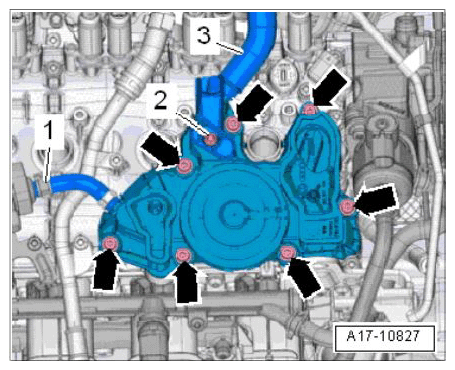

    G11980298

    Oil separator
