Installing Oil Separator

  1. Fit oil separator. Replace seal.
  2. Secure oil separator.
    1. 2.1. Screw in screws by hand and tighten one after the other. Tightening torque 9 Nm (6.5 ftlb.)

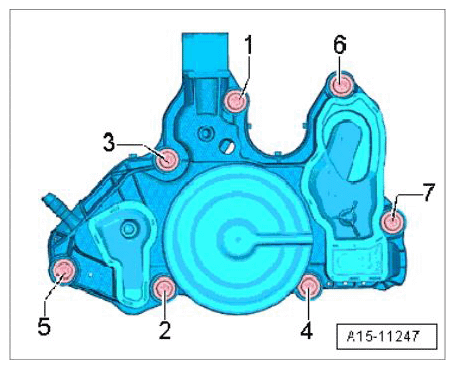

    Fig 1: Oil Separator Screws Tightening Sequence
    G11980300Courtesy of PORSCHE CARS NORTH AMERICA, INC.
