Engine Safety Device

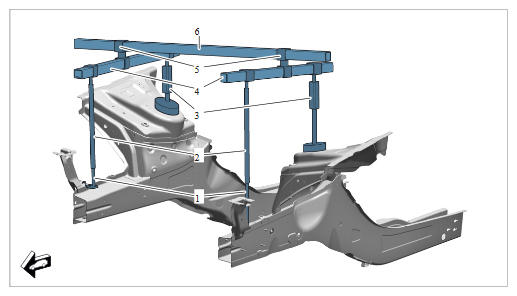

Fig 1: Longitudinal Members And Spring Strut Domes Component Locations
G11980272Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. For left longitudinal member, one adjustable foot T40093/51
  1. For right longitudinal member, one base T40093/50
  2. Two supports T40093/3P
  3. Two supports T40091/50-51  , engine safety device supplement T40091/54  , engine safety device supplement T40091/55
  4. Two pipes T40091/1
  5. Two joiners T40091/3
  6. One engine safety device 10-222 A

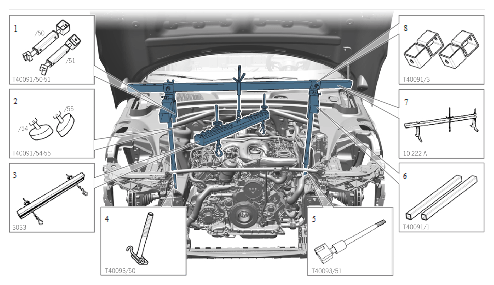

Fig 2: Engine Safety Device Component Locations
G11980273Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Support T40091/50-51
  2. Engine safety device supplement T40091/54 Engine safety device supplement T40091/55
  3. Lifting tackle 3033
  4. Base T40093/50
  5. Adjustable foot T40093/51
  6. Pipe T40091/1
  7. Support bracket 10-222 A
  8. Joiner T40091/3
