Securing Engine On Assembly Support

CAUTION: Heavy components
  • Risk of squashing

→ Wear personal protective gear.

→ Get someone to help if necessary.

WARNING: Danger of objects or loads falling down
  • Risk of squashing or crushing

→ Secure components to prevent them from falling down.

NOTE:
  • The engine needs to be suspended on an assembly support for certain repair work.
  1. Lifting tackle 2024 A  must be engaged at the engine and at the workshop crane WE 1188  .
    1. 1.1. Arrange perforated rails and support hooks as shown.

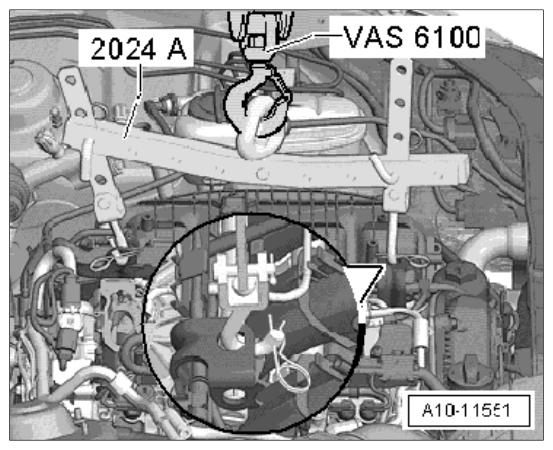

    G11980257

    2024 A Lifting tackle

  2. Secure the engine at the transmission side on the engine and gearbox support WE 1323  .
    1. 2.1. Secure sleeve -1-  using a nut and washer -arrow-  .
    2. 2.2. Secure sleeves -2-4-  on the crankcase.
    3. 2.3. Secure sleeve -5-  at the oil guide housing (upper part of oil pan) -6-  .
    4. 2.4. Secure sleeves on the universal mount with the screws.
    5. 2.5. Fit engine using workshop crane WE 1188  on engine and gearbox support WE 1323  and secure it.

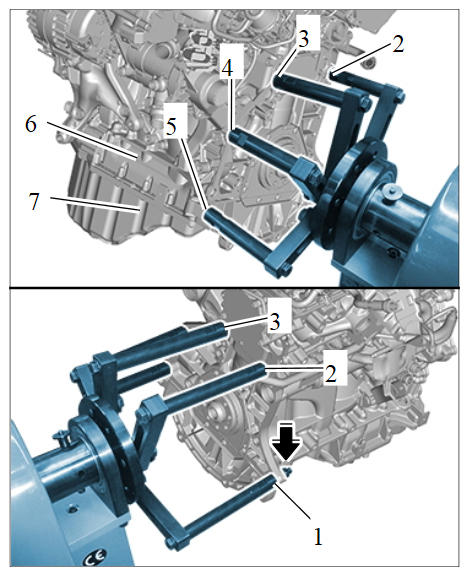

    G11980258

    Engine on engine support
