Preliminary Work

  1. Remove drive plate. → 136319 REMOVING AND INSTALLING DRIVE PLATE
  2. Remove intermediate plate -1-  .
    1. 2.1. Guide intermediate plate over the dowel sleeves -2-  .
    2. 2.2. Lift tab -4-  on the joint flange -3-  .
    3. 2.3. Remove intermediate plate -1-  .

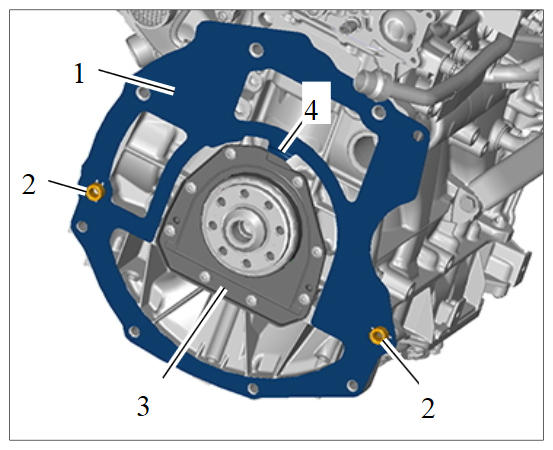

    G11980255

    Intermediate plate

  3. Remove dowel sleeve -1-  on the right-hand side.
    1. 3.1. Carefully tap out the dowel sleeve.

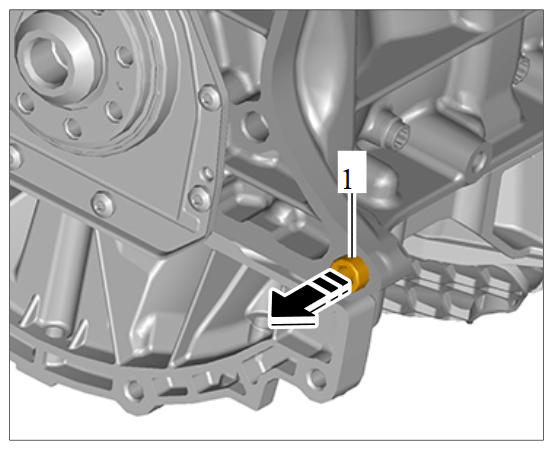

    G11980256

    Dowel sleeve on engine
