Removing Engine

CAUTION: Heavy components
  • Risk of squashing

→ Wear personal protective gear.

→ Get someone to help if necessary.

  1. Unscrew fastening screws -1, 2 and 3-  at the engine mount.

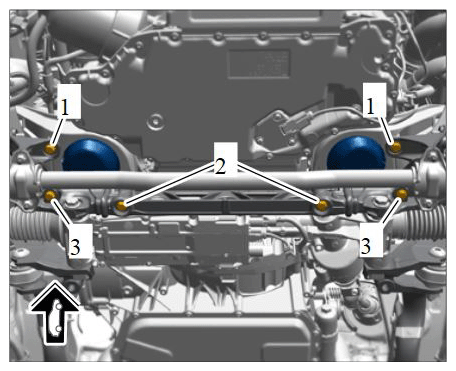

    G11980301

    Fastening screws for engine mount

  2. Remove engine using workshop crane WE 1188.  Check clearance.
