Mounting Engine

CAUTION: Heavy components
  • Risk of squashing

→ Wear personal protective gear.

→ Get someone to help if necessary.

  1. Position engine using workshop crane WE 1188.
  2. Fit fastening screws -1, 2 and 3-  on the engine mount.
    1. 2.1. Tighten fastening screws -3-  .
    2. 2.2. Tighten fastening screws -2-  .
    3. 2.3. Tighten fastening screws -1-  .

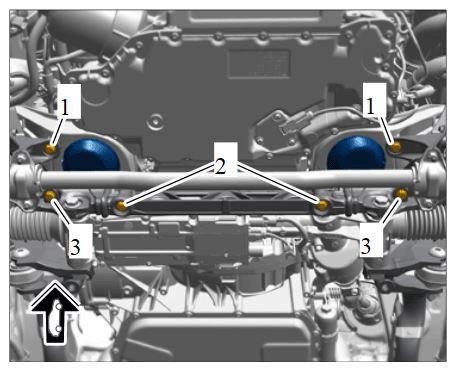

    G11980302

    Fastening screws for engine mount
