Complaint - Engine Knock During Acceleration: Checking Engine For Carbon Deposits (17/18) (All Models Except MACAN Edition): Tools

Designation	Type	Number	Description
cleaning unit	Workshop equipment	WE 1833

Model year:

as of 2010

Model Line:

Cayenne (92A)

Panamera (970/971)

Macan

Subject:

Intake valves and intake ports

Information:

Carboned-up valves in the engine can be reworked and cleaned using cleaning equipment.

If there is a complaint about knocking combustion  , e.g. during acceleration at high load, the condition of the intake valves and ports must be checked before doing any other work  .

If the check shows  that the intake valves and intake ports have carbon deposits  and are dirty, they must be cleaned using the cleaning unit WE 1833  .

There should be no need to replace the components.

Date of Introduction:

The cleaning unit WE 1833  can be ordered immediately for dealers.

Remedial Action:

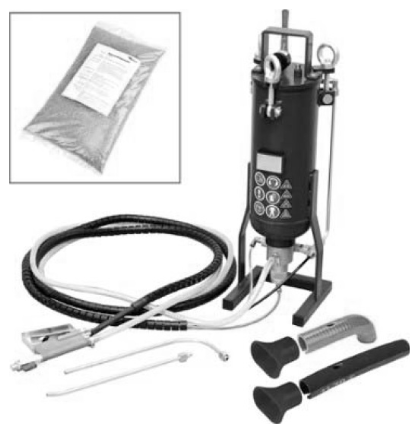

The cleaning unit WE 1833  is used for cleaning carboned-up intake valves and intake ports.

Compressed air is used to spray a special granulate mixture into the intake port, where it loosens and removes carbon build-up.

The dirty granulate is extracted during spraying using an industrial vacuum cleaner.

Instructions for use can be found in the operating instructions of the cleaning unit:

• Access the intake valves and ports via the intake-air distributor.
• When working on the intake valves and ports using the cleaning unit, make sure that the intake valves into the respective combustion chamber are closed  => ignition TDC  .

Tools:

Cleaning unit WE 1833  (This is a recommended tool for dealerships to purchase, but can also be rented.)

Invoicing:

For invoicing and documentation using PQIS, enter the following coding:

	10010	Engine
	3015	dirty
