Removing front strut

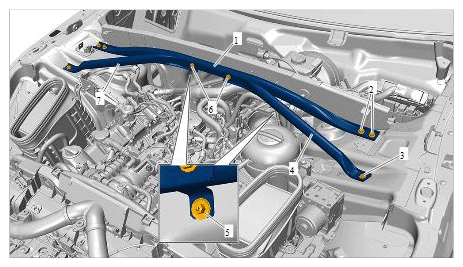

G11983894

Mounting for dome strut with additional reinforcement

  1. Remove dome strut -1-  with additional reinforcements -4 and 7-  .
    1. 1.1. Unscrew nuts -2 and 5-  and fastening screw -3-  at the left and right.
    2. 1.2. Remove dome strut -1-  .
  2. Remove additional reinforcements at the right -7-  and left -4-  .
    1. 2.1. Unscrew fastening screws -3 and 6-  on the relevant additional reinforcement.
    2. 2.2. Remove additional reinforcement -4 or 7-  .
