Preliminary Work

  1. Remove wheel → 440519 REMOVING AND INSTALLING WHEEL .
  2. Remove cowl panel cover → 508719 REMOVING AND INSTALLING COWL PANEL COVER .

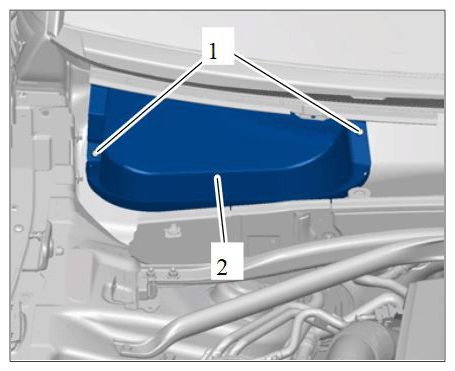

  3. Unscrew fastening screws -1-  and remove air inlet housing cover -2-  .
    G11983865

    Mounting for air inlet housing cover

  4. Remove front trim panel → 700219 REMOVING AND INSTALLING FRONT TRIM PANEL .
  5. Remove additional reinforcement on dome strut → 408619 REMOVING AND INSTALLING FRONT STRUT (DOME STRUT) .
  6. Remove shock absorber fork. → 408919 REMOVING AND INSTALLING SHOCK ABSORBER FORKS
