Checking Position Of PASM Connector For Clearance

NOTE:

On vehicles with coil springs, the connector grommets or the PASM connector line can rub against the coil spring while driving and can be damaged as a result. To prevent this from happening, the clearance of the PASM connector must always be checked when the following prerequisites are met:

PASM connector was connected/loosened on the spring strut .
The error message "PASM fault" appears in the instrument cluster .

Prepare for the test.
1. 1.1. Raise the vehicle (vehicle springs must be completely relieved). → 4X00IN LIFTING THE VEHICLE
2. 1.2. Centre the steering wheel.

Check the distance between the PASM connector holder (long pin on U-shaped connector holder) and the coil spring mounting point -dimension x- .

Checking distance between PASM connector holder and coil spring mounting point

Distance OK	Length 66 mm < x < Length 69 mm
Distance not OK	x < Length 66 mm or x > Length 69 mm

Check clearance of connector grommet and PASM line with respect to the coil spring.

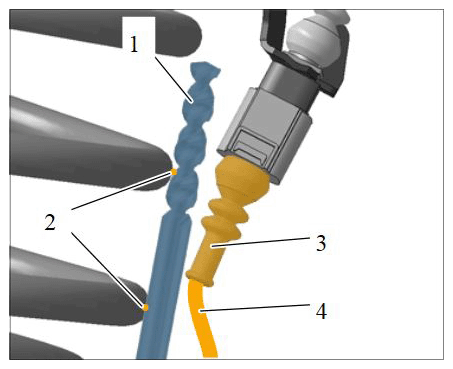

Checking clearance of connector grommet and PASM line with respect to coil spring

3.1. Place M10 drill bit -1- on at least 2 windings of the coil spring -2- .

Clearance OK	If the M10 drill bit -1- is not touching the connector grommet -3- and PASM line -4- .
Clearance not OK	If the M10 drill bit -1- is touching the connector grommet -3- and PASM line -4- .

Further steps must be carried out, depending on the results of the check (see table below).

Distance of PASM connector holder	Clearance of connector grommet and PASM line	Action required
OK	OK	No further action required.
OK	Not OK	Push PASM line up into the retaining clip. → 5. If the clearance of the connector grommet and PASM line → 3. is still not OK, the coil spring must be replaced. → 408537 DISASSEMBLING AND ASSEMBLING FRONT SPRING STRUT
Not OK	OK	Bend back PASM connector holder → 6 .
Not OK	Not OK	Bend back PASM connector holder → 6 . If the clearance of the connector grommet and PASM line → 3. is still not OK, push PASM line up into the retaining clip → 5 . If the clearance of the connector grommet and PASM line → 3. is still not OK, the coil spring must be replaced. → 408537 DISASSEMBLING AND ASSEMBLING FRONT SPRING STRUT

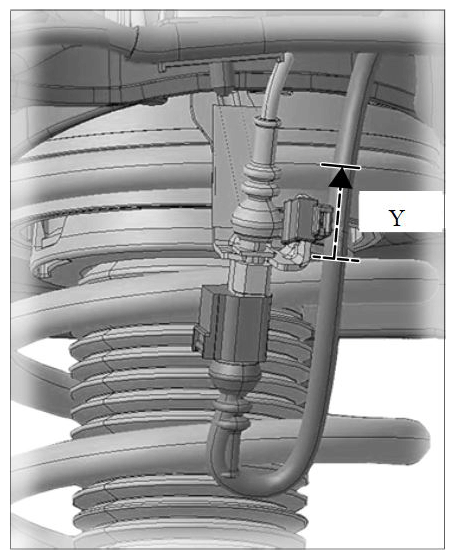

Push PASM line up into the retaining clip by dimension y Length 12.5 mm +/-2.5 mm .

Pushing PASM line into retaining clip
Bend back PASM connector holder.

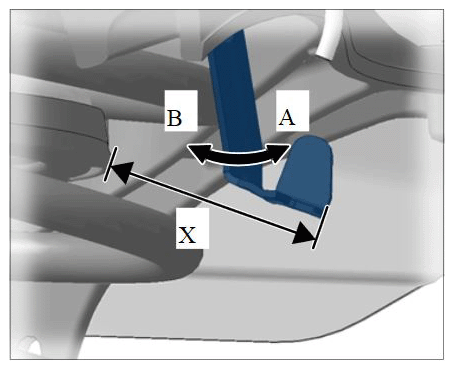

Bending back PASM connector holder
1. 6.1. If the distance is -x- < Length 66 mm , bend the holder towards -A- .
2. 6.2. If the distance is -x- > Length 69 mm , bend the holder towards -B- .
3. 6.3. The distance must be between Length 66 mm < -x- < Length 69 mm.
