Removing front connecting link (suspension/stabilizer)

NOTE:
  • The illustrations for removing and installing are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some of the repair illustrations show only one side of the vehicle  .

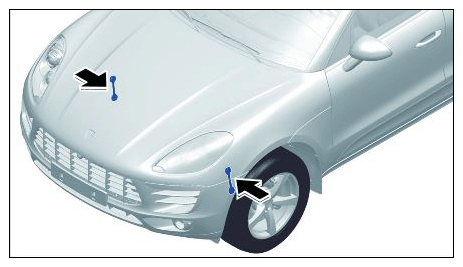

G11983858

Overview

  1. Unscrew fastening screw -3-  .

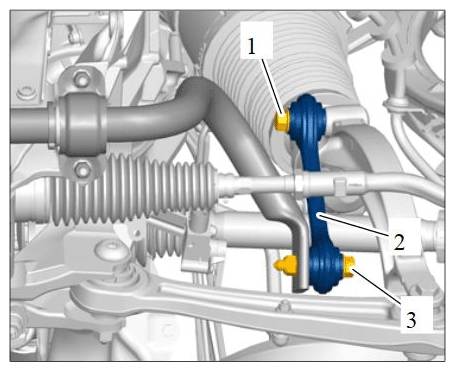

    G11983859

    Mounting for connecting link

  2. Unscrew fastening screw -1-  .
  3. Remove connecting link -2-  .
