Removing front anti-roll bar

→ Secure components to prevent them from falling down.

NOTE:

• The illustrations for removing and installing are shown only on one equipment variant and may differ from the actual equipment variant  .
• Some of the repair illustrations show only one side of the vehicle  .

Overview

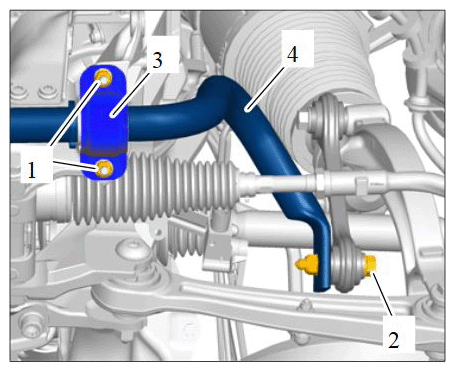

1. Unscrew fastening screw -2-  at the left and right.

   Mounting for front anti-roll-bar

2. Unscrew fastening nuts -1-  and remove anti-roll bar clamp -3-  at the left and right.
3. Remove anti-roll bar -4-  .
