Subsequent Work

1. Remove support bracket → 1001IN SUPPORTING ENGINE ON THE BODY (ENGINE SAFETY DEVICE) .
2. Install lower trailing arm on both sides of the vehicle → 401719 REMOVING AND INSTALLING LOWER TRAILING ARM .
3. Remove tension straps → Tying up wheel bearing housing  .

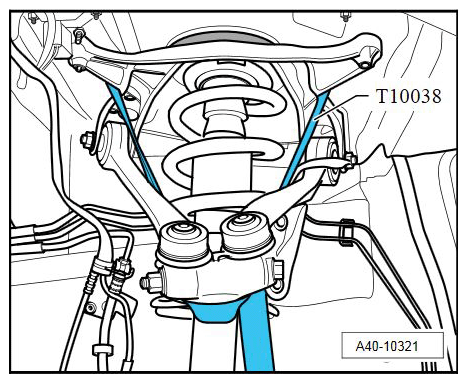

   Tying up wheel bearing housing

4. Install front level sensors → 431855 REPLACING FRONT LEVEL SENSOR .
5. Install power-steering gear → 489055 REPLACING POWER-STEERING GEAR .
6. Install anti-roll bar → 407719 REMOVING AND INSTALLING FRONT ANTI-ROLL BAR .

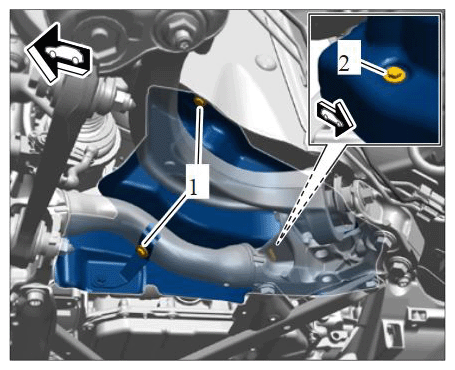

7. Install heat shields at the left and right and tighten fastening screws -1 and 2-  .

   Fastening screws -1-  : Tightening torque 9 Nm (6.5 ftlb.)

   Fastening screw -2-  : Tightening torque 20 Nm (15 ftlb.)

   Heat shield on front-axle carrier

8. Install front-axle support → 400819 REMOVING AND INSTALLING FRONT-AXLE SUPPORT .
9. Install front underbody panelling → 519219 REMOVING AND INSTALLING COVER FOR FRONT UNDERBODY .
10. Install wheel housing liner on both sides of the vehicle → 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER .
11. Fit front wheels → 440519 REMOVING AND INSTALLING WHEEL .
12. Perform suspension alignment → 449503 SUSPENSION ALIGNMENT, COMPLETE .

95BAA1, 95BAB1, 95BAD1, 95BAF1, 95BAJ1, 95BAK1, 95BAS1, 95BAX1, 95BAY1, 95BAZ1

Model year as of 2014, Model year up to 2020

C00, C02, C05, C06, C07, C08, C09, C10, C11, C12, C13, C14, C15, C16, C17, C18, C19, C20, C21, C22, C23, C24, C25, C26, C27, C28, C32, C33, C34, C35, C36, C37, C38, C39, C41, C45, C45, C46, C96, C97, C98, C99
