Subsequent Work

1. Install shock absorber fork. → 408919 REMOVING AND INSTALLING SHOCK ABSORBER FORKS .
2. Install additional reinforcement on dome strut → 408619 REMOVING AND INSTALLING FRONT STRUT (DOME STRUT) .
3. Install front trim panel → 700219 REMOVING AND INSTALLING FRONT TRIM PANEL .
4. Fit air inlet housing cover -2-  and tighten fastening screws -1-  .

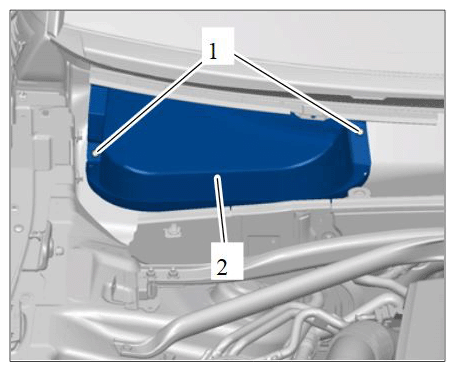

   Mounting for air inlet housing cover

5. Install cowl panel cover → 508719 REMOVING AND INSTALLING COWL PANEL COVER .
6. Fit wheel → 440519 REMOVING AND INSTALLING WHEEL .
7. Perform suspension alignment. → 449503 SUSPENSION ALIGNMENT, COMPLETE .

95BAA1, 95BAB1, 95BAD1, 95BAF1, 95BAJ1, 95BAK1, 95BAS1, 95BAX1, 95BAY1, 95BAZ1

Model year as of 2014, Model year up to 2020

C00, C02, C05, C06, C07, C08, C09, C10, C11, C12, C13, C14, C15, C16, C17, C18, C19, C20, C21, C22, C23, C24, C25, C26, C27, C28, C32, C33, C34, C35, C36, C37, C38, C39, C41, C45, C45, C46, C96, C97, C98, C99
