Preliminary Work

  1. Remove front drive shaft → 404119 REMOVING AND INSTALLING FRONT DRIVE SHAFT .
  2. Insert both joint pins for the upper trailing arms -2-  in the wheel bearing housing and fit screw -1-  . This is necessary in order to prevent damage to chassis components when loosening and tightening the fastening screws on the wheel bearing unit.

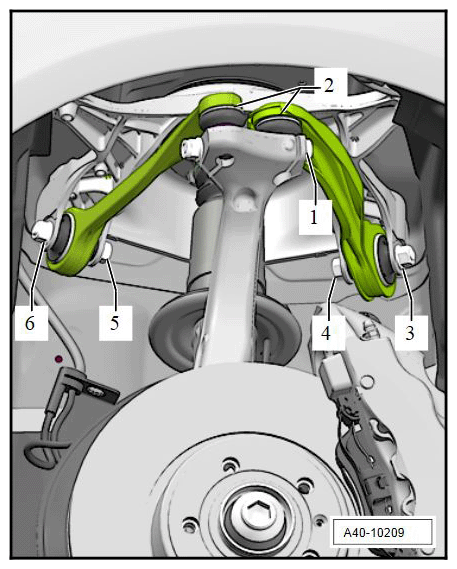

    G11983845

    Mounting for trailing arm

  3. Remove brake disc → 465019 REMOVING AND INSTALLING FRONT BRAKE DISC .
  4. Remove front speed sensor → 451155 REPLACING FRONT SPEED SENSOR .
