Removing front drive shaft

  1. If used: Remove heat shield -1-  over the drive shaft.

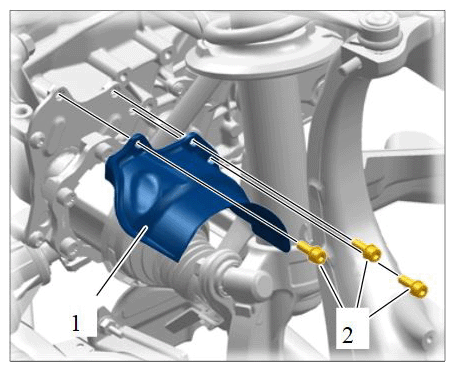

    G11983797

    Heat shield over drive shaft (component can differ from illustration)

    1. 1.1. Unscrew fastening screws -2-  .
  2. Unscrew fastening screws for the drive shaft on the transmission.

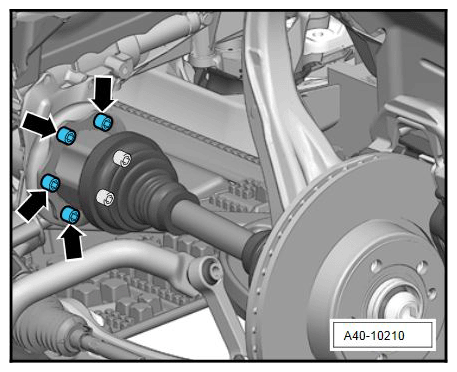

    G11983798

    Drive shaft mounting on transmission side

  3. Turn wheel bearing housing in until the drive shaft can be pulled out of the wheel bearing housing.
  4. Remove drive shaft.
