Removing Rear Side Section

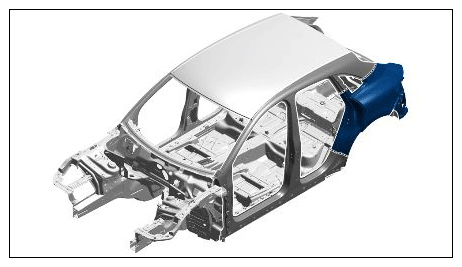

Fig 1: Rear Side Section Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of rear side section

Information:  Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Information:  Mark cuts X  in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

1. Mark and make cuts. → Distance: 86 mm → Distance: 60 mm → Distance: 90 mm → Distance: 50 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

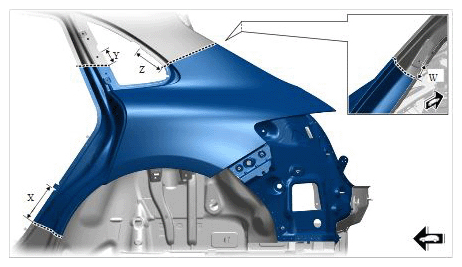

   Cuts on rear side section

   Information:  Drill out the connection point on one side only. Do not damage the plate underneath.

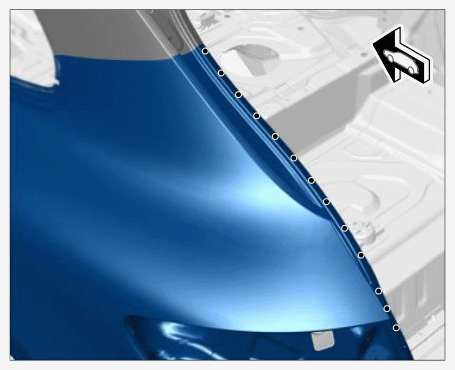

2. Drill out spotwelds using spotweld drill  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

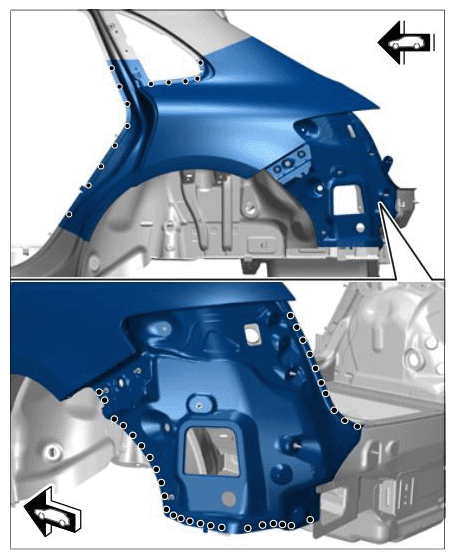

   Removing rear side section

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing rear side section

3. Bend up edge of wheel arch in area -arrows  -.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

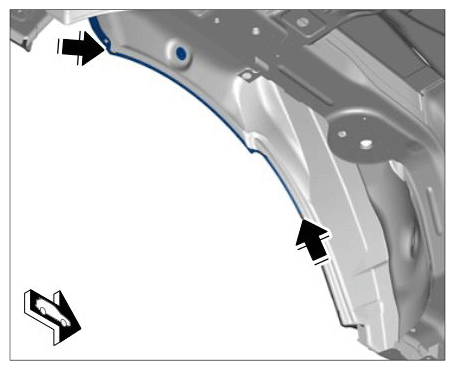

   Bending up edge of wheel arch

4. Heat the marked bonding surfaces.
   1. 4.1. Remove rear side section.

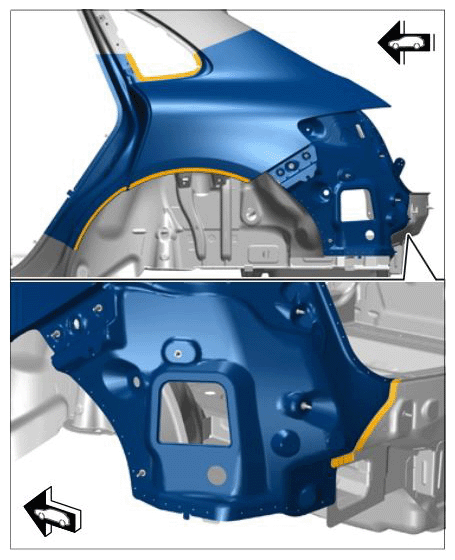

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing rear side section
