Removing Rear Boot Floor Plate

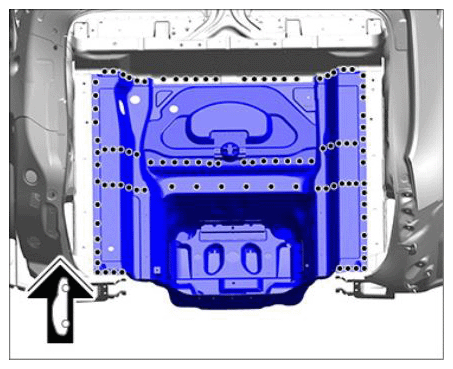

Fig 1: Rear Boot Floor Plate Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of rear boot floor plate

Information:  Drill out the connection point on one side only. Do not damage the plate underneath.

1. Drill out spotwelds using spotweld drill   .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

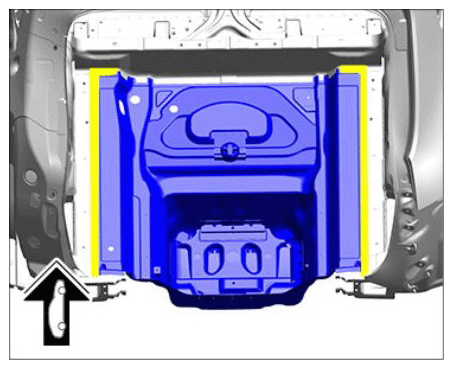

   Removing rear boot floor plate

2. Heat bonding areas.
   1. 2.1. Remove rear boot floor plate.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

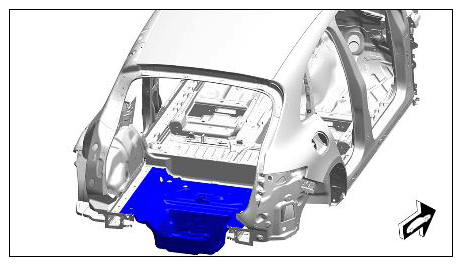

   Removing rear boot floor plate
