Installing Rear Boot Floor Plate

Information:

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive  .
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed  .
• Do not begin bonding work until all materials and tools necessary for later repair work are available  .

1. Install rear boot floor plate and check that it fits perfectly. Check gap dimensions. Refer to WM 6X00IN GAP DIMENSIONS .
2. Plug-weld boot floor plate using inert gas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

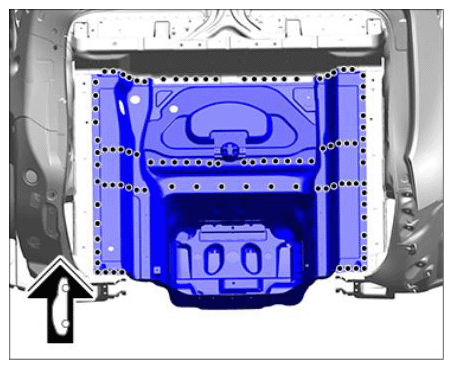

   Installing rear boot floor plate
