Installing Side Member Reinforcement

Information:

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive  .
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed  .
• Do not begin bonding work until all materials and tools necessary for later repair work are available  .

1. Install side member reinforcement and check that it fits perfectly. Check gap dimensions. Refer to WM 6X00IN GAP DIMENSIONS .

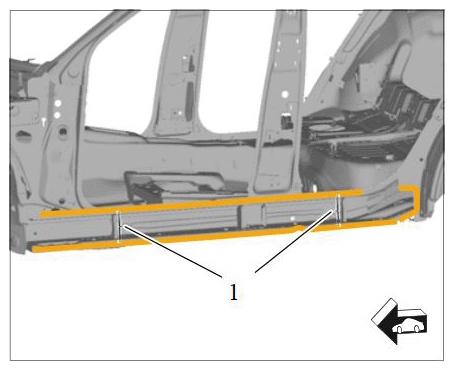

   1. 1.1. Apply adhesive to the areas marked in yellow. Refer to WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE 000.043.206.30 or WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00 .Application depth: 3.0 mm
2. Bond in moulded parts -1-  .
3. Apply foam filler. Refer to WM 5X00IN WORKING WITH BODY STRUCTURAL FOAM (2010 - 14) , WM 5X00IN WORKING WITH BODY STRUCTURAL FOAM (2014 -) .

   Make sure that all openings and gaps are closed off with the sealing compound.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Applying adhesive

4. Install side member reinforcement.

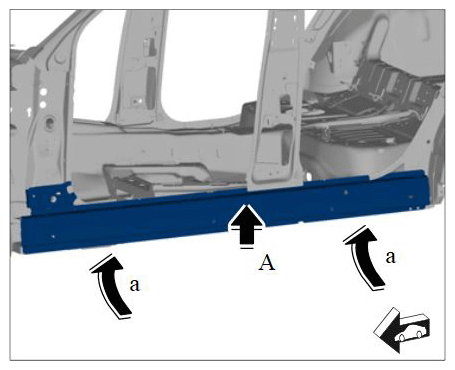

   1. 4.1. Guide in side member reinforcement from below -arrows a-  and push it under the inner B-pillar -arrow A-

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Installing side member reinforcement

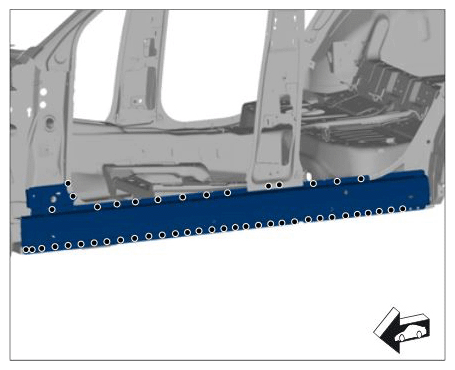

5. Resistance spot-weld the side member reinforcement.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing side member reinforcement
