Removing Front Seat-Surface Extension

  1. Disconnect electric plug connection -1-  on the motor -arrow A-  .

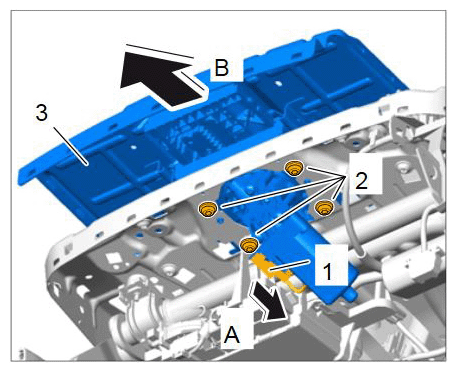

    G11982012

    Removing seat-surface extension

  2. Unscrew four fastening screws -2-  on the seat-surface extension.
  3. Remove seat-surface extension -3-  and motor in an upward direction -arrow B-  .
