Preparing Rear Side Section For Installation

  1. Fit in rear side section.

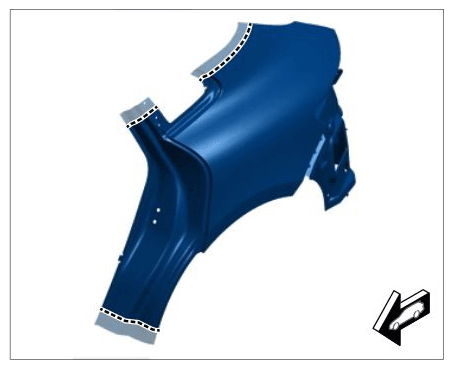

    1. 1.1. Cut rear side section at the transitions to the body leaving an overlap of 30 mm.
    G11983254Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Preparing rear side panel for installation

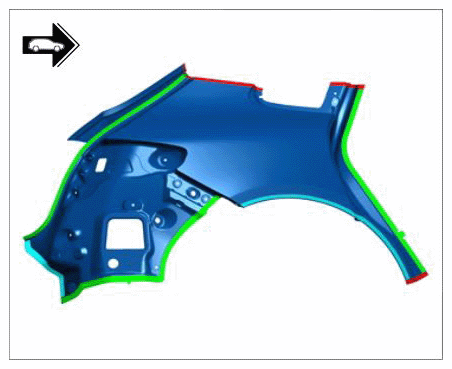

  2. Prepare connection areas for bonding and welding.
    G11983255Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Preparing rear side panel for installation

    Red Plug-welding/apply a full weld using inert gas without bonding
    Green Resistance spot-welding
    Blue Bonding
