Removing Centre Side Member

Information:  Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

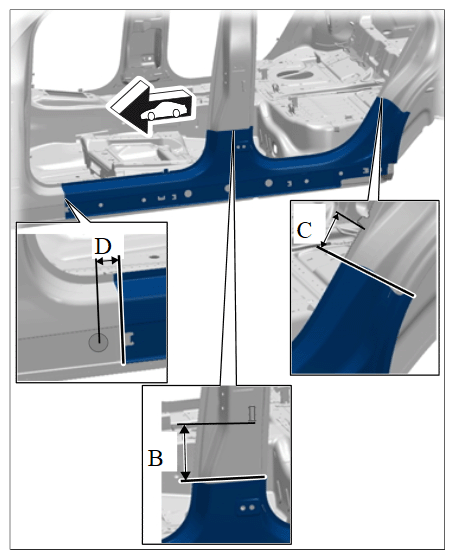

Information:  Mark cuts B, C and D  in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing centre side member

F  - → Distance: 75 mm

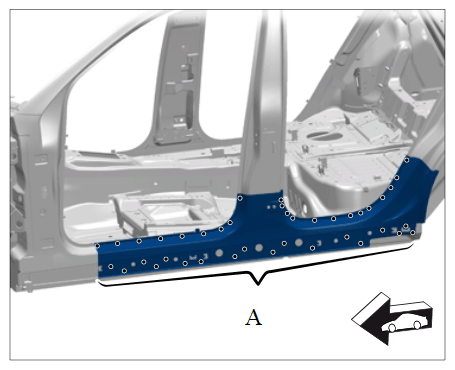

1. Drill out spotwelds using spotweld drill  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing centre side member

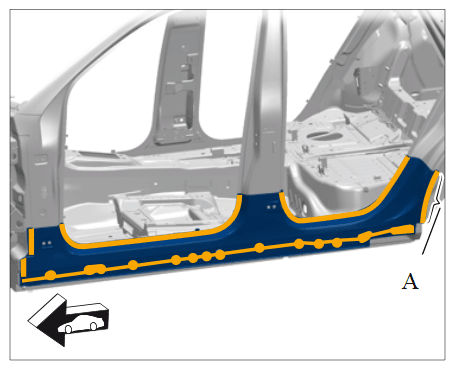

2. Heat bonding areas.
   1. 2.1. Bend up edge of wheel arch -A-  .
   2. 2.2. Remove centre side member.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing side member
