Preparing Inner Side Member For Installation

  1. Fit in inner side member.
  2. Prepare the marked connection areas for bonding and welding.

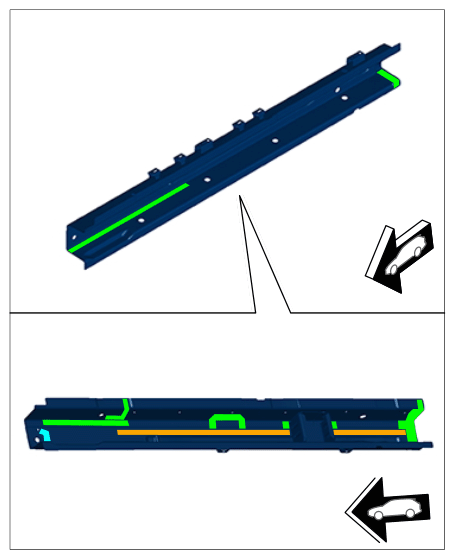

    G11979021Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Preparing inner side member

Green Resistance spot-welding
Blue Bonding
Orange Bonding + resistance spot-welding
