Removing Sealing Bellows On The Steering Column

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To remove and install the sealing bellows, the steering column must be removed.
When the intermediate steering shaft has been separated, make sure that everything remains extremely clean. The grease on the individual parts must not be wiped off. If these individual parts are stored for a long period of time, they must be protected from dust and dirt.
Mark the upper and lower part of the steering column (sliding piece with universal joint for steering column). This ensures that both parts of the steering column are re-assembled at the correct position.

Information

The pictures shown in this document may differ from the original.

Overview of steering column - sealing bellows

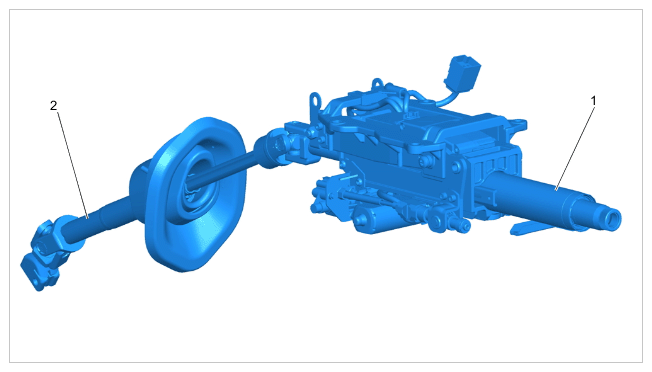

Fig 1: Steering Column Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Steering column

1	Upper part of steering column
2	Lower part of steering column

Remove the steering column completely and carefully clamp it in a vice.

Information

Always use additional aluminium clamping jaws for clamping the steering column in the vice.

1.1 Electrically adjustable steering column: Make sure that the steering column is clamped securely at one of the four fastening positions -1- on the steering column.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

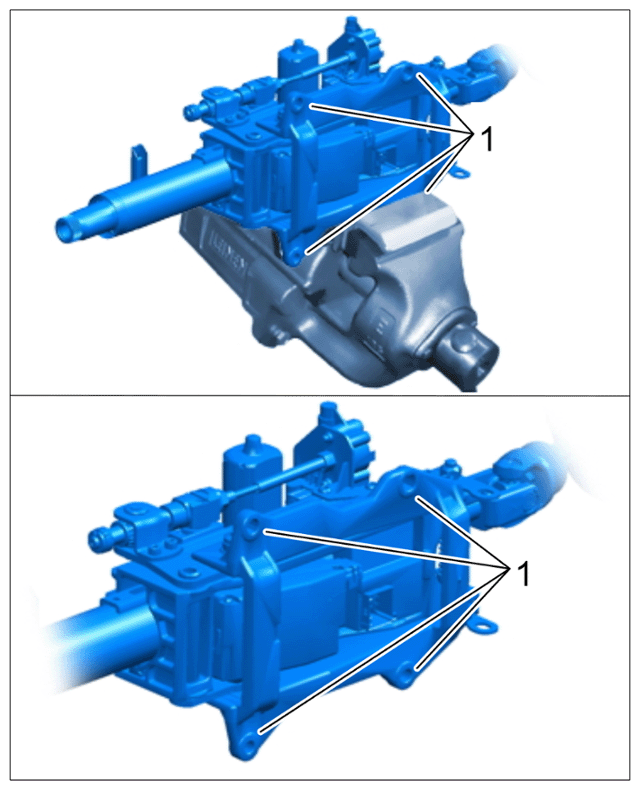

Positions for clamping electrically adjustable steering column

1.2 Mechanically adjustable steering column: Make sure that the steering column is clamped securely at one of the four fastening positions -1- on the steering column. Important: Before clamping the steering column, position a spacer in the cut-out on the reinforced side -arrows- to prevent the steering column from bending or being damaged irreparably.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

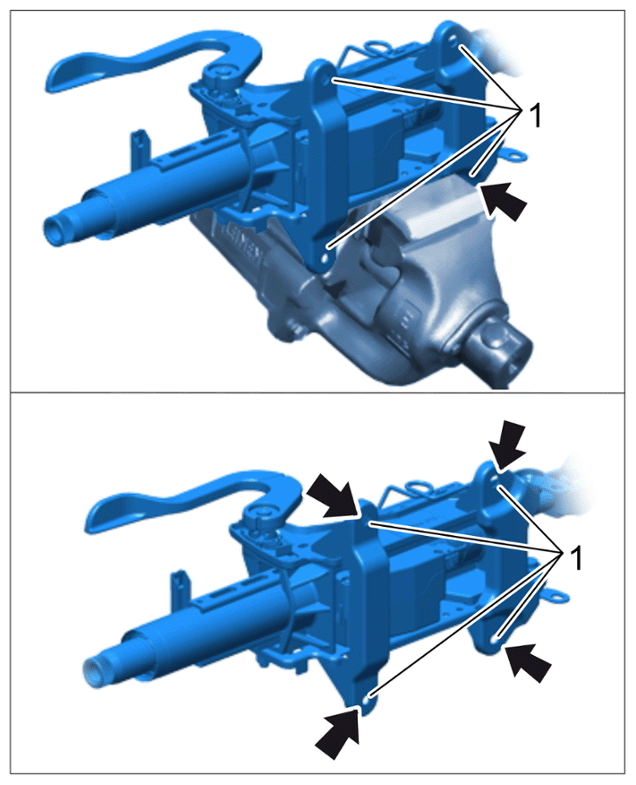

Positions for clamping mechanically adjustable steering column

Both parts of the intermediate steering shaft must be marked for assembly -coloured dots- . This ensures that both sections will not be installed in an offset position.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

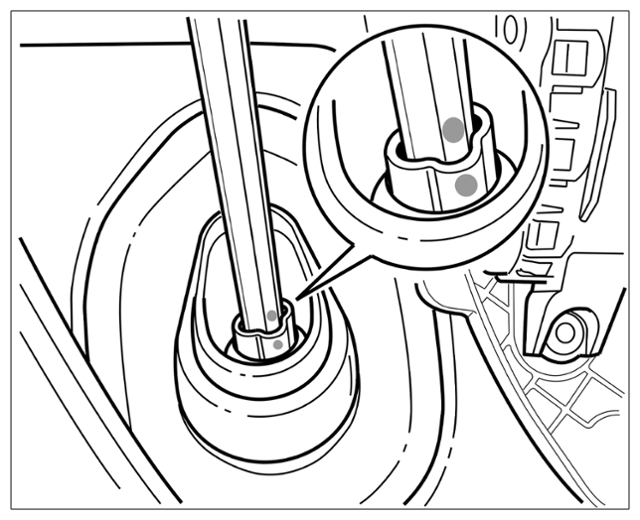

Marking (shown as an example)
Disconnect the steering column at the intermediate steering shaft > Steering shaft (shown as an example) . The lower steering shaft can be pulled from the upper steering shaft with a quick strong jerk at the pressure point.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

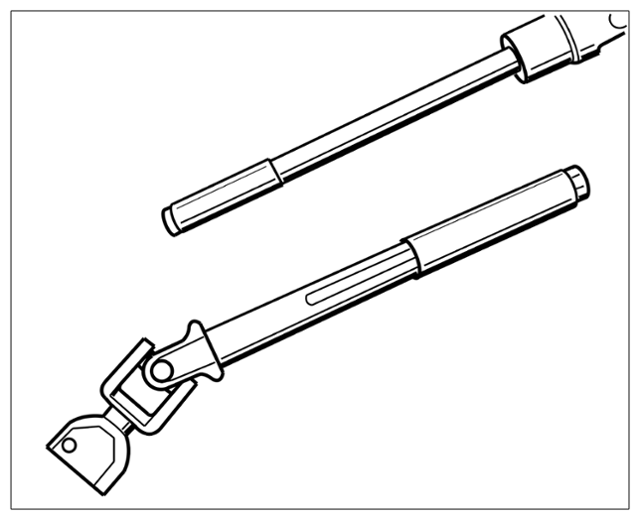

Steering shaft (shown as an example)
Remove the sealing bellows on the steering column.
