Installing Sealing Bellows On The Steering Column

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The steering columns must only be replaced as a complete unit. Individual components cannot be disassembled and replaced.
Visually inspect all parts.
Make sure that everything remains absolutely clean.
Use the prescribed lubricant on the sliding part (see Parts Information in Main Group 40305). This lubricant is available under the following part numbers: Container quantity: one 10g tube = 000.043.205.44!
Fit together both parts of the steering column that were previously marked with -colour markings- .
The lower steering shaft must slide on the upper steering shaft smoothly and without catching.

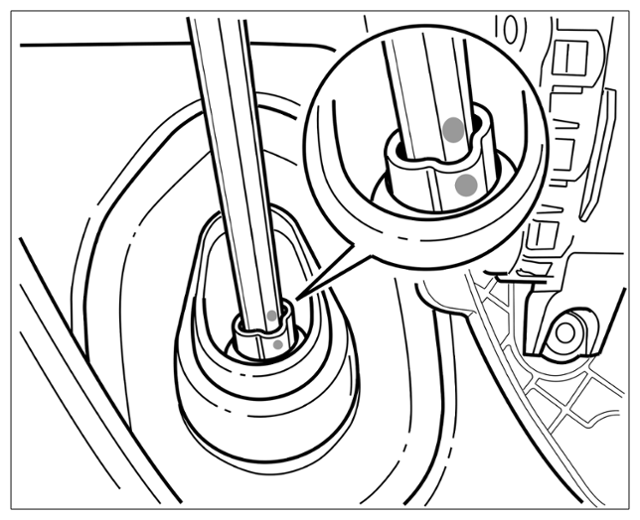

Fit the sealing bellows on the steering column at the correct position.
Slide the lower steering shaft onto the upper steering shaft > Steering shaft (shown as an example) . Overcome the pressure point with a strong jerk.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

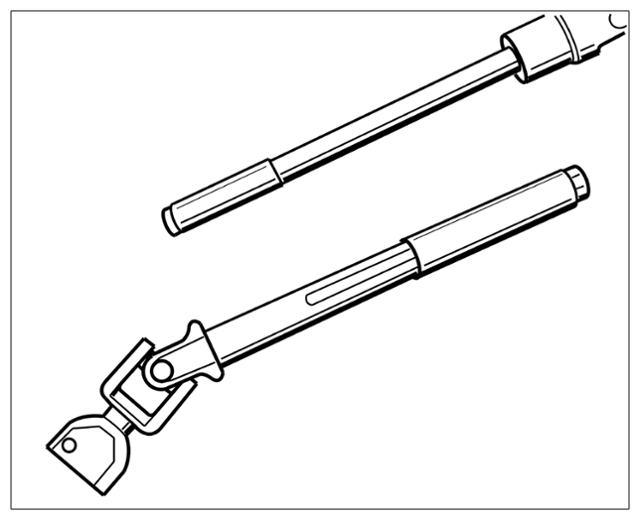

Steering shaft (shown as an example)
