Removing Air Cleaner Housing

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

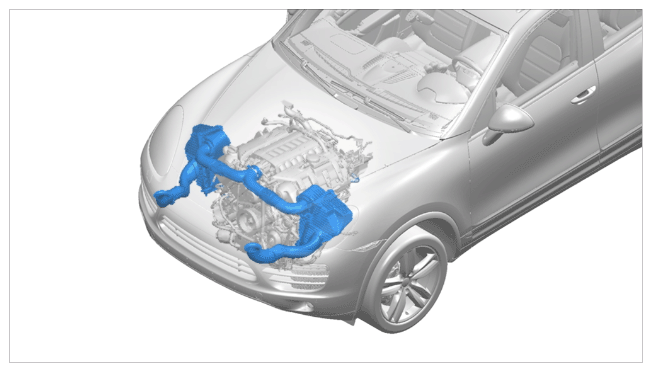

Air cleaner housing - V8 S

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

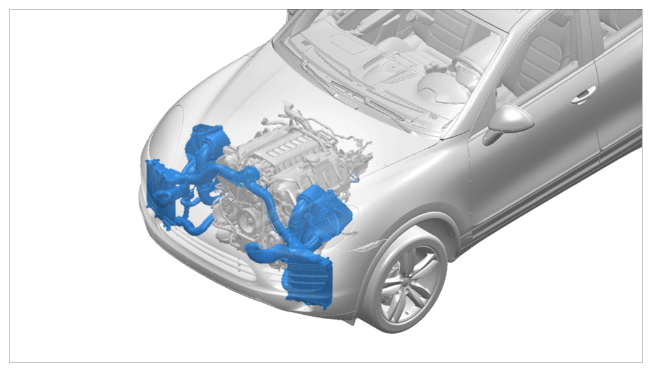

Air cleaner housing - V8 Turbo

Remove the air guide.
> 243619 Removing and installing air guide - "REMOVING "

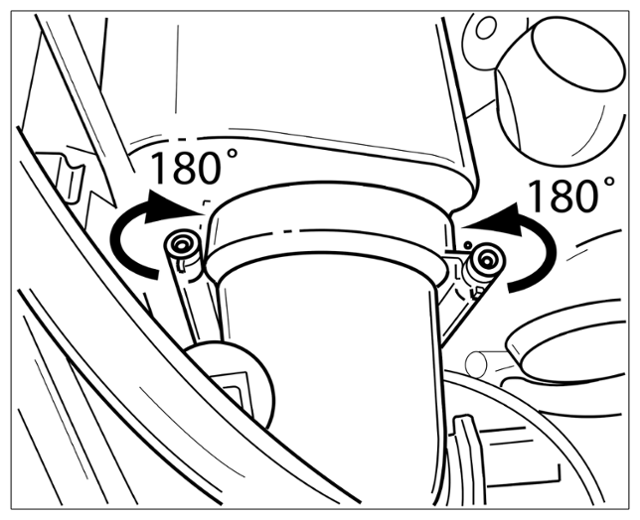

Loosen connections on the air cleaner covers. To do this, turn the bolts 180° and pull them out > Loosening connections on air cleaner . Pull off intake pipes.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening connections on air cleaner
Open the cover on the air cleaner housing.

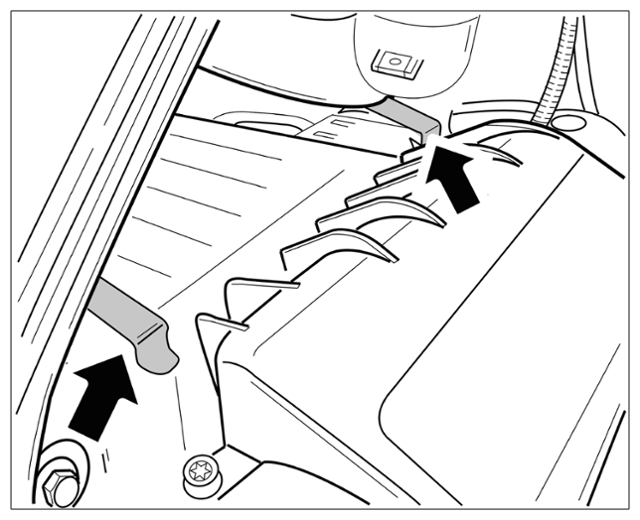

To do this, unclip the two fastening clamps -arrows- using a suitable tool.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening clamps

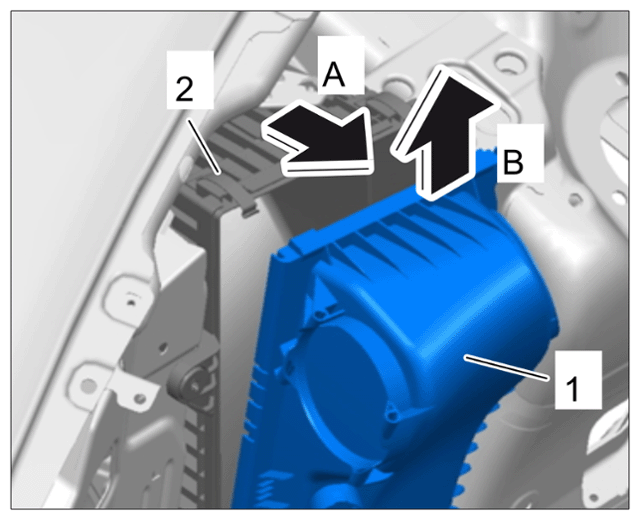

Fold the cover -1- of the air cleaner housing -2- forward at the top -A- and pull it out in an upward direction -B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing cover on air cleaner housing
Remove air-cleaner element.
> 242455 Replacing air-cleaner element - "REPLACING "

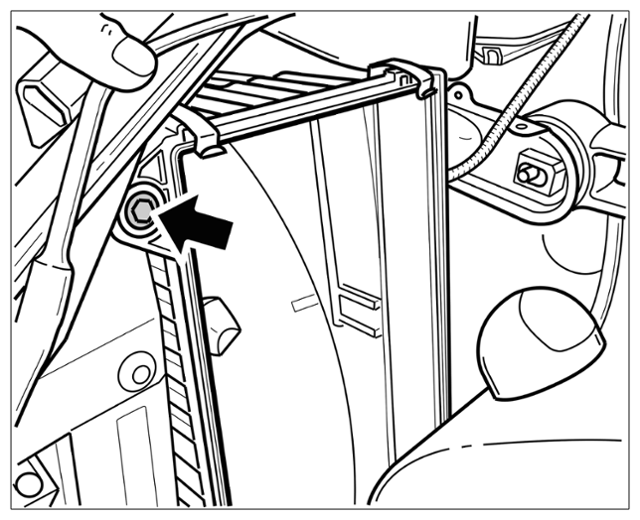

Loosen the fastening screw -arrow- on the air cleaner housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw

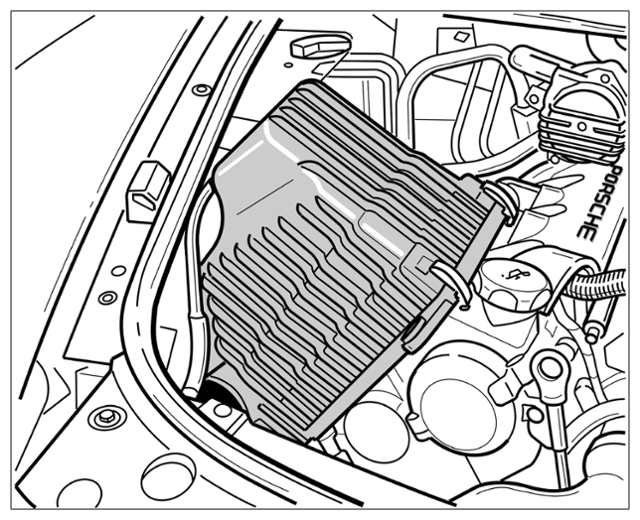

Lift the air cleaner housing, tip it towards the engine and remove it from the engine compartment. > Air cleaner housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air cleaner housing
