Preliminary Work

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove engine guard.
> 108019 REMOVING AND INSTALLING ENGINE GUARD
Drain engine oil. For details, see > 170117 CHANGING ENGINE OIL AND OIL FILTER .
Remove front wire assembly from the oil pan for PDCC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

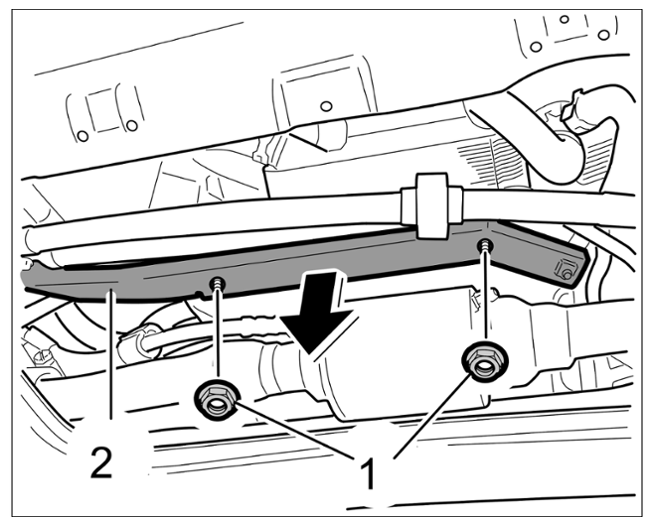

Removing line bracket for PDCC lines
Remove front-axle carrier. Pay attention to the PDCC cable connections when doing so.
> 400619 REMOVING AND INSTALLING FRONT-AXLE CARRIER

. Engine carrier remains fitted on the longitudinal members.
