Oil Ingress Into The Engine Wiring Harness

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Vehicle Type: Cayenne, Panamera (except hybrid) and Sports Cars

Model Year: Cayenne: 2008 and up, Panamera: 2010 and up, Sports Cars: 2009 and up

Part Number: Various

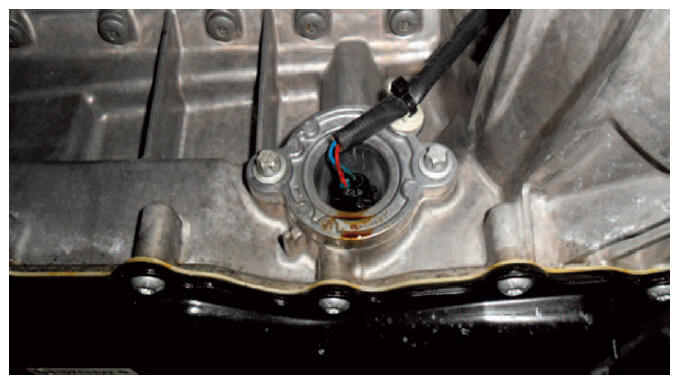

Issue: Oil in the wiring harness.

Information: If oil is found in the engine wiring harness during a repair, the wiring harness and all the affected components (including the oil pump control valve) must be replaced.

G16308966Courtesy of PORSCHE CARS NORTH AMERICA, INC.
