Preparing Connection Areas Of Body For Installing Side Panel Bottom Section

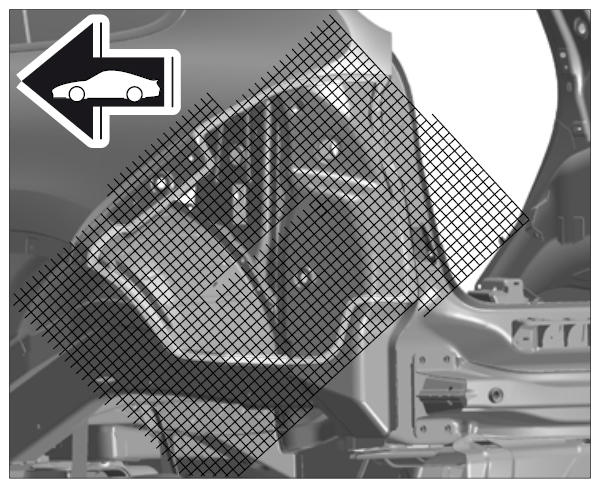

Fig 1: Identifying Weld Bore In Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 1.1. Hold a copper plate between the side section and wheel housing and plug-weld the bore in the side section using inert gas.
2. 1.2. Grind the spot weld flat.

Fig 2: Identifying Side Panel Bottom Section Body Welding And Sealing Areas

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2.1. Clean the body connecting flanges of underbody protection, adhesive residue and paint in the marked areas.
2. 2.2. Grind the connecting flanges until bare on both sides.

Information

Do not apply zinc powder paint to the bonding areas.
