Adjusting Connection Point For Tail Light

Information

• Due to technical issues, it is not possible to provide a side panel with a tail light holder with hole pattern for repair work. In this case, the bore must be drilled afterwards.

1. Mark center drill hole on the holder.

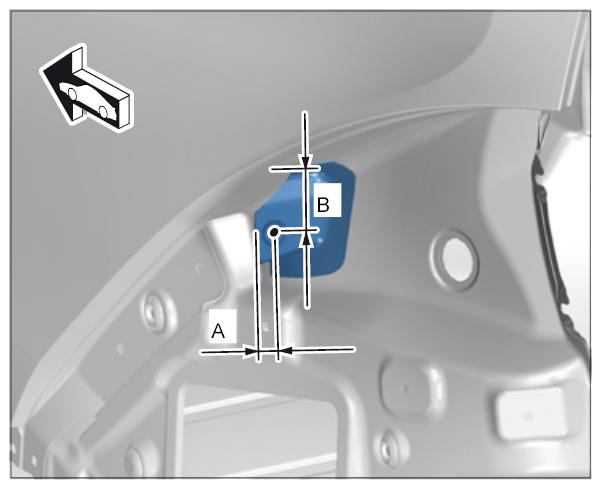

   Fig 1: Adjusting Connection Point For Tail Light

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 1.1. Mark drill hole.

      → Distance A: 57.8 mm → Distance B: 17.9 mm

2. Mark drill holes on the holder.

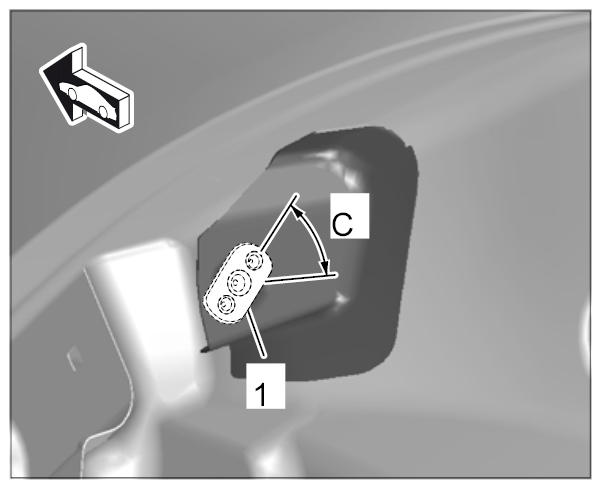

   Fig 2: Adjusting Connection Point For Tail Light

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 2.1. Put spacing plate -1-  in position and align it. → Torque angle: 45°
   2. 2.2. Mark the center of the holes with a marking tool.
3. Drill holes in the holder.

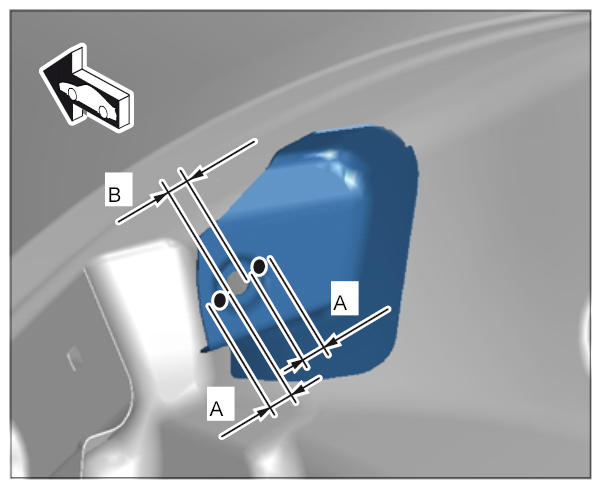

   Fig 3: Adjusting Connection Point For Tail Light

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 3.1. Drill the holes → Bore A: 8 mm
   2. 3.2. Drill the hole. → Bore B: 20 mm
   3. 3.3. File out the transitions between the holes.

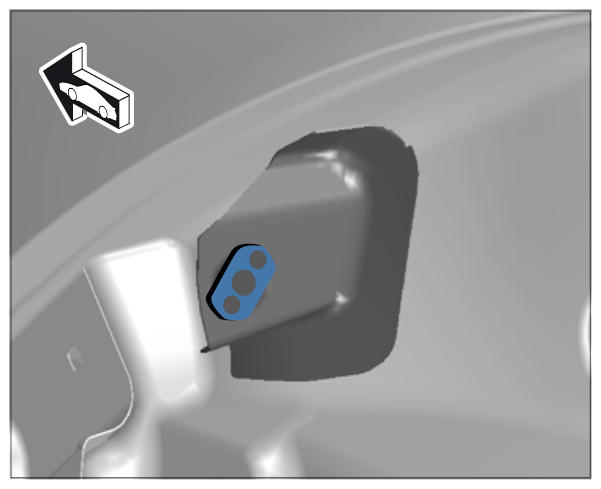

4. Fit retainer plate.
   Fig 4: Identifying Retainer Plate

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
