Checking Drive Belt: Notes
NOTIFICATION
Drive belt removed incorrectly
- Risk of damage to drive belt
- Only remove the drive belt when it is cold.
- Replace damaged drive belt.
NOTIFICATION
Drive belt breaks and becomes jammed
- Risk of damage to components (trim panels, electric cables, etc.)
- Leaks at the crankshaft vibration damper sealing ring
- Vibration damper can overheat and lose its strength
- Following belt breakage, check adjacent components and the interior of the engine compartment for damage. Repair or replace damaged parts.
- Find out why the belt broke. Check deflection rollers or crankshaft vibration dampers for prior damage.
- If the drive belt is jammed, replace the vibration damper.
WARNING:
Rotating components
- Danger of limbs being trapped or severed
- Disconnect power supply to the drive motor of components or to the battery.
Information
- If spark plugs must be changed in the course of maintenance operations, the drive belt should be checked when the spark plugs are removed. The engine can then be cranked easier.
Information
The pictures shown in this document may differ from the original.

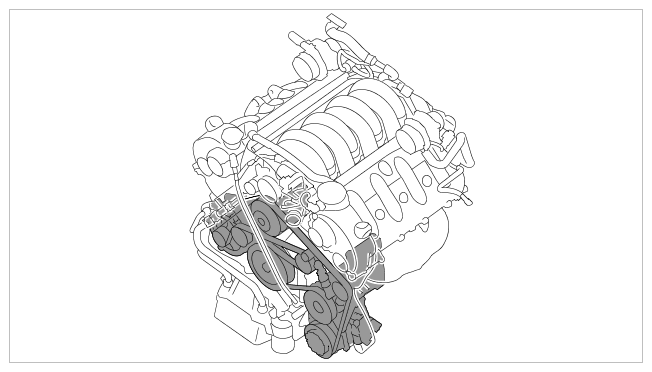

Installation position of drive belt (shown as an example in illustration)
- Mark the running direction -arrow-
of the drive belt with chalk.

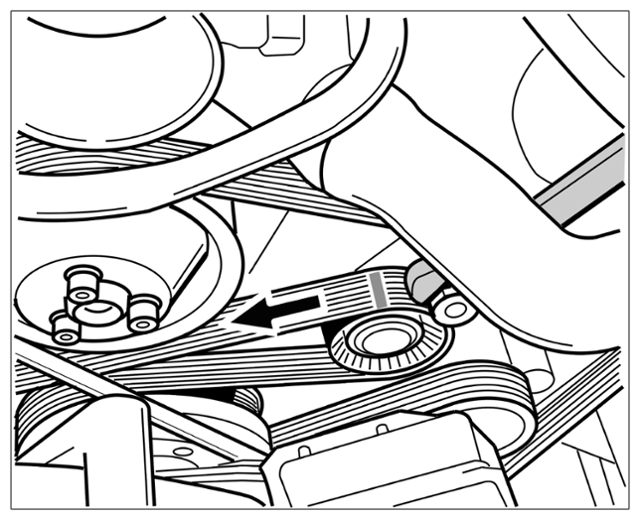

Marking on drive belt (shown as a n example in illustration)
- Turn engine at the vibration damper in the direction of movement is using a socket wrench (a/f 27) until the chalk mark is at the same place again. While turning at the crankshaft, check the belt at the deflection rollers for signs of damage.
